Split and Extendable D&R Airence USB Broadcast Console

1 YEARS LIMITED WARRANTY MORE INFORMATION

Do You Have Questions?

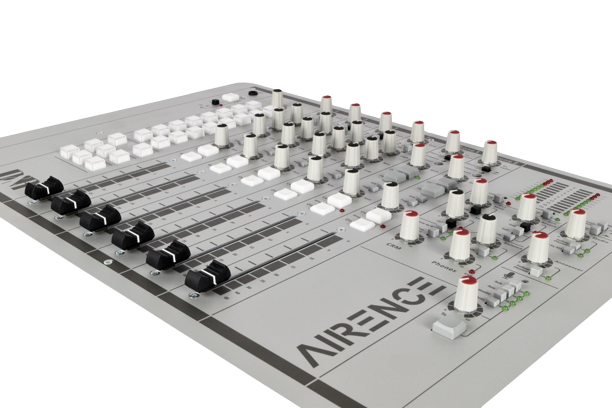

Front panel

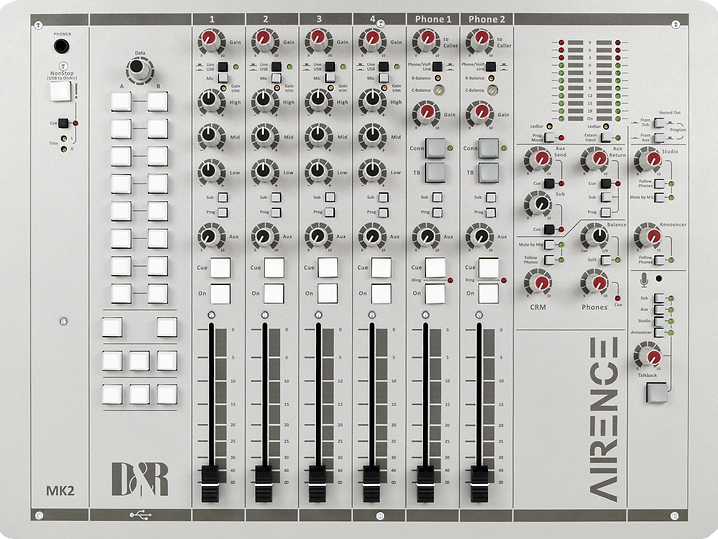

The Airence-USB model has 4 balanced mic inputs (+48 phantom is standard) with inserts for signal processors, 6 stereo line inputs, 4 USB channels and 2 Telephone Hybrids (or VoIP channels).Fader start generates in the Mic mode a Mic-on signalling to switch ON-Air lights.

There is a 3 band Equalizer on channel 1-4 and on all 6 Triple input channels of the Extender Unit. The stereo Aux send can be set pre or post fader. All high quality low noise mic inputs have low cut jumpers.

One physical USB connection interfaces 4 stereo audio channels from and to your PC plus all (programmable) remote controls on the right hand section of the mixer.

24 illuminated (green/red or yellow) switches can be used to control functions in your Radio Automation such as starting jingle machines and switching between live and NON stop.

Recording a voice track while ON-AIR is also one of the possibilities.

The illuminated front panel ON switch is electronically attached to the built in mechanical fader start enabling selection of a play-out start either by fader or via the ON switch.

Any AC Voltage

The Airence-USB will work on any voltage in any part of the world, 110, 115, 120, 220, 230 or 240 at 50 or 60Hz. The power consumption is super low, to put it in perspective, it's much less than a domestic television. The webstation-usb complies with all the worlds safety and EMC standards and is CE marked accordingly with a declaration of conformity.

• Unlimited Numbers of Inputs
• Program and Sub Busses
• Studio, Announcer and Phones Outputs
• Bi-Directional Cue Communication Buss
• Internal NON STOP Switching
• Power Adapter Included
• Works with Windows and Apple's OSX
• Two Hybrid or VoIP Channels Built-In

USB control section included

A smart mixer with an integrated USB based control section. Built with well proven low noise circuitry, this console is the reliable workhorse for the self-op production D.J.

Back panel

On the back panel of the Airence Main unit you will find the Power Supply input. This is a 5 pin XLR connector with also a possibility to connected a second redundant Power Supply to your unit. In case of choosing for the AES Output option, this redundant Power Supply XLR connector will be used for the AES Output XLR.

Also you can find the USB connector to control your USB channels and the Control Panel by your computer. Very simple; your computer will see a new USB device when connecting the Airence Main unit to your computer. Further configuration can be done by the software included at the unit.

All in and output connections are on standard Jack / Cinch and XLR connectors.
