30W Professional FM Broadcast Power Amplifier



30W Professional FM Broadcast Amplifier. Overview
5 Years! Warranty
5 YEARS
LIMITED WARRANTY
MORE INFORMATION

Inc. Delivery to UNITED STATES

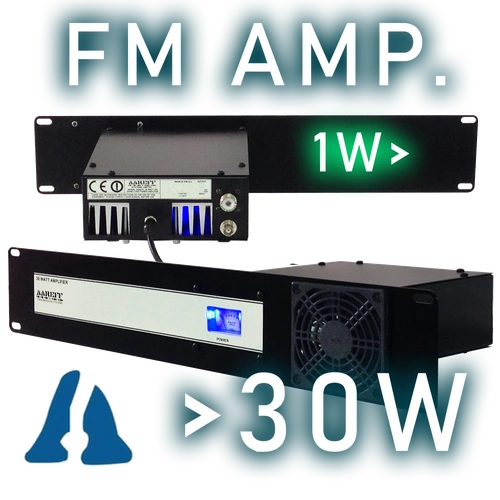

30 watts is that level of power where it's not really small, but not really big either, it's about the right size for a village or small. Also useful for mobile operation where you need to run on a vehicle battery for some huge event that covers few miles. Available as a 2U 19 inch rack version shown above or as a compact version shown below.


POWER AMPLIFIER FM 1W IN 30W OUT 19 INCH 12-15V DC OR 90-260V AC (30wnta19p)
US$ 509.76

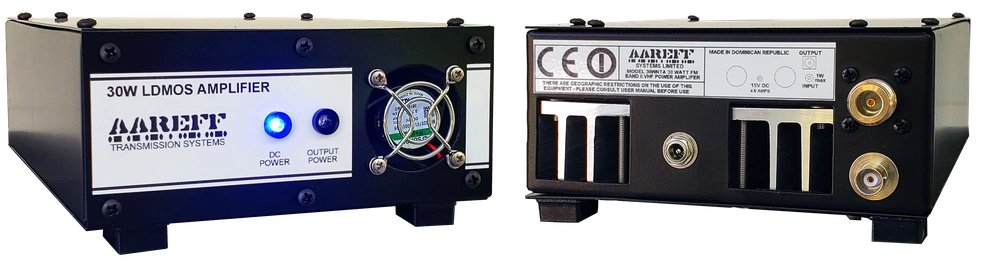

30W Professional FM Broadcast Power Amplifier. Wide View

POWER AMPLIFIER FM 1W IN 30W OUT COMPACT VERSION 12-15V DC OR 90-260V AC (30wntap)
US$ 506.00

1 Watt Drive (can be more on request!)

Our amplifiers have a uniform input requirement of 1W. In other words, when driven with 1W of power, this amplifier is capable of producing 30W of RF output continuously, while still adhering to global technical regulations.

If you require a different input power level, no problem, we can do that easily. Just email or message us in the box below for more details.

Temperature Resilience

The Ampleon LDMOS BLP5LA55S RF transistor at the heart of this unit rates it at 66% efficiency in class AB. We don't bias this LDMOS, we run it in class achieving at least 66% or more. Given this it does run quite cool, if you touch the aluminum heatsink fins at the back, they're hot, but not really hot, you can hold you fingers there indefinitely without discomfort. The unit does have a small and quiet 40mm fan just to help it move the air though the heatsink fins.

VSWR Resilience

Again due to the modern Ampleon LDMOS BLP5LA55S our amplifier is capable of withstanding a load mismatch VSWR of 65:1 through all phases. This is the manufacturers rating at an RF output of 55 watts. Since we only use the transistor at just over 30 watts, then it's well within any margin of error and is super robust regardless of the reflected power.

Super Silent ADDED Option

What is SUPER SILENT? it means it's as quiet as a mouse and can use it in a live mic studio without background noise. The video demonstrates the 100 watt transmitter, but it is exactly the same for the 30 and 50 watt units.

If you want SUPER SILENT option, MAKE SURE YOU ADD IT AS AN OPTION in the price panel below.

SUPER SILENT means less 20dBA, this is comparable to a low level whisper in a studio, the chances are other equipment, air con or studio ventilation is higher in volume.

Super Silent Transmitter YouTube Banner Image

SUPER SILENT (<20dBA) STUDIO MIC FRIENDLY OPTION (s-silent)
US$ 88.65


High Stability

Regardless of high temperature, high VSWR poor antenna and mismatch conditions or poor AC power, the power level of 30W will remain stable all the time and the RF signal will never pollute the spectrum with instabilities. The output amplifier in this unit is designed to work in hostile conditions and environments. The BBC, British Army and US Army Delta Company all purchased these units for use in Iraq and Afghanistan.

Global Voltage Compatibility

All AC version of this product is truly globally compatible, you can plug it into any AC outlet in the world from 90 to 260V at 50 or 60Hz

12V and 48V DC Option

The regular version of this unit is 90 to 260V AC. However we can also manufacture it for 12V or 48V DC. To the best of our knowledge, in the entire world, Only We Make 12V DC FM Broadcasting Transmitters and Amplifiers up to RF Power Outputs of 250W.

Applications include mobile setups where only a car or vehicle battery is available. We have a perfect Magnetic Mount FM Antenna for mobile setups. Also fixed installations with connection to solar battery systems of 12V and 48V DC

We default ship the AC version. If you want the 12 or 48V DC version, it's important you notify us by email when you make your order.

12V DC 30W FM Transmitter


Antennas

The model will work with our 50 ohm antennas listed below:

Basic Dipole
Vertical 5/8 Wave
2 Way Stacked Dipole
4 Way Stacked Dipole
8 Way Stacked Dipole
Circular Dipole
Folded Dipole
Mag Mount 1/4 Wave

Do You Have A Question?

Email Address

Phone Number

Compliance

This amplifier complies with EMC, Voltage Safety and RTTE Harmonised Standards laid down by the European Union. It's CE marked with a Declaration of Conformity. More information HERE

All stated measurements were made at 220VAC at 27 Degrees Celsius ambient temperature unless stated.

User Manual Click Here
RF Power Output Adj. 30 Watts into 50 ohms
Power Input 900 to 1400mW (1.4W MAX.)
Spurious Emissions Less than -75 dB ref to carrier
Harmonic Emissions Less than -70 dB ref to carrier
Freq Range 87.5 to 108 MHz
Residual AM Less than 0.5 %
Synchronous AM Less than 0.5 %
RF Ruggedness Any VSWR phase for length of time
Output Connector N-Female
Input Connector BNC
Operating Temp -20 to +40 Deg C
AC Input Voltage 90-264 V AC 47-63 Hz
AC Input Power 50W Continuous for 30W RF OUT with RF SWR less than 1.5
Working Humidity 20-90% RH non-condensing
Safety Standards UL60950-1 TUV EN60950-1 BSMI CNS14336 CCC GB4943 J60950-1 approved
EMC Emission Compliance to EN55022 class B EN61000-3-2 3 FCC PART 15 / CISPR22 class B CNS13438 class B GB17625.1
EMC Immunity Compliance to EN61000-4-2 3 4 5 6 8 11 light industry level criteria A
