The audio level in any sound broadcasting system must be controlled to prevent over modulation. The current trend is for broadcast stations to transmit a constant level of audio optimised to 100%. The Aareff Limiter Compressor is specifically designed to achieve constant 100% modulation without any over modulation using an FM broadcasting transmitter. The result is a professional sound on your station output with all music and speech inputs. This unit is fully enclosed in aluminum and steel casing measuring 279 x 190 x 89 mm.
Both of the following units come with a power supply for connection to any AC voltage between 90 and 260 V AC. Operation is also possible from 11 to 14V DC, ideal of vehicle battery or low voltage systems.

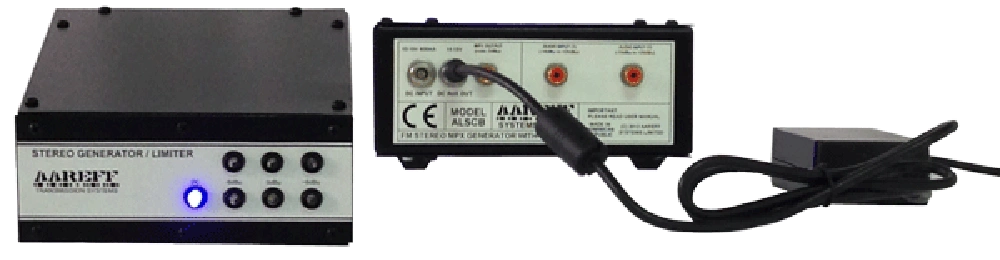

This unit is also available with a built in Stereo Coder. The result of this is that instead of coming out with separate left and right audio channels, the output is single line with MPX. MPX is the Multiplex signal that is used on a non-stereo MPX input transmitters.
|Peak Limiting with AGC Action
|Better than 1 mS Attack Time
|Very Low Noise (-75 dBu S/N Ratio)
|Very Low Distortion (0.2% at limiting)
|30Hz-15KHz Frequency Response
|50uS Pre-emphasis (75uS USA)
|Standard 0dBu 775 mV rms Output
|3 LED's indicate Compression Level
|Single Supply Operation 11-16V DC
|Audio Inputs up to +24dBu 12Vrms
This FM transmitter system along with all our other products comes with a limited 2 year warranty (see warranty conditions)
All these models comply with European standards ETS 300384 for R&TTE, EN 301 489-11 for EMC and (LVD) 2006/95/EC for safety, the relevant FCC sections of US 47 CFR Part 73 for verification and ITU-R BS.450-3 (11/01) FM Broadcasting at VHF.
