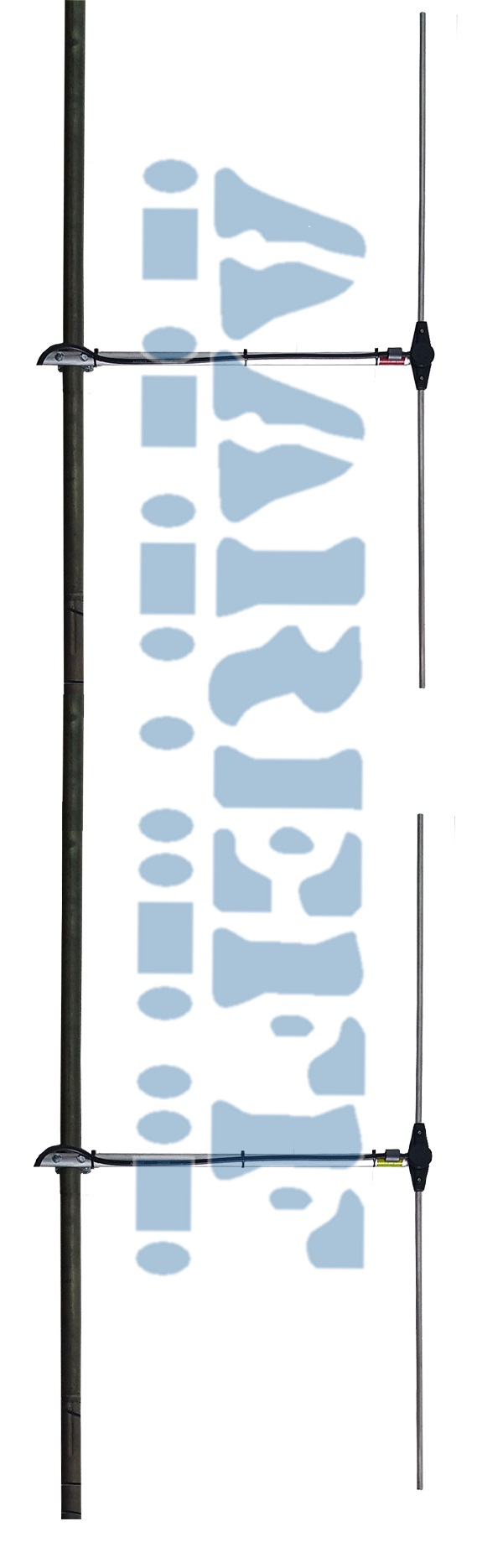

2 Way Stacked Dipole High Gain FM Broadcasting Antenna

2 Way Stacked Dipole FM Transmitter Antenna

Inc. Delivery to UNITED STATES

US$ 258.16

Technical Specification

Click here for user manual
Gain 4.8dBi
Frequency 87-109 MHz
Bandwidth 87.5 to 108 MHz for SWR of 1.5
SWR 1.5 Max
Max Power 400 Watts
Construction Aluminium, Teflon and Ferrite
Connector UHF/SO-239 or N-Type (optional)
Input Z 50 ohm unbalanced
Polarisation Vertical
Weight 2.7Kg

Do You Have A Question?

Email Address

Phone Number

No Retune, Continuous 87.5 - 108 MHz

The double stacked dipole has the benefit of 4.8dBi of gain and broadband operation. This is achieved by slightly phase staggering the signal to each dipole. Providing the antenna is mounted correctly the SWR is less than 1.5 across the whole band from 87.5 to 108 MHz. This antenna system never needs tuning, just put your transmitter on any frequency from 87.5 to 108 MHz and switch on. If you require more than 4.8dBi of gain the 4 way 7.8dBi and the 8 way 10.8dBi stacked dipoles based on this model are also available

50Ω Unbalanced Input

The RF field strength directly below this antenna is lower than that of a single dipole. The built in balun provides a truly unbalanced input and prevents any RF currents traveling down the outer of the feeder cable. This combined with the low field strength below the antenna reduces the chances of audio and TV interference considerably and maximises RF power to the horizon.

Resin Filled Insulator

The main feed point of the dipole contains a matching coil to reduce the antennas natural impedance of 72 ohms to 50 ohms. To protect this and the LMR400 coaxial feed from water and other weather related elements, the whole feed point is filled with resin.

The Best On The Market

There are not many complete 2 way stacked dipoles on the market and certainly not at the price we sell this one for. Without a shadow of a doubt, this is the best value for money and performance high gain and full broadband FM 2 way stacked dipole you will find on the market.

2 Way Stacked Dipole FM Transmitter Antenna

Long Life and High Reliability

We designed this antenna back in 1996 and because it spanned the entire 88 - 108 band without a retune, we made it the standard antenna we sold with all our 200W, 250W and 500W ERP systems. Just like our other antennas, we can count the number of returns over 20 years on less toes than you have on one foot. It has been installed in just about every area of the world without suffering wind, corrosion or other weather problems. It will last upward of 15 years with little maintenance.

Low TV Interference

As with all high gain antennas, with correct mounting the RF field strength directly below this antenna is much lower than a single dipole. The built in balun prevents any RF currents going down the outside of the cable and interfering with other cables on the tower or mast. This low field strength below the antenna lessens the possibility of audio, TV and other interference considerably to users closely local.


Normally the dipole system clamps as high off the ground as possible to a mounting pole of at least 4 meters in length and between 25 and 38mm in diameter which you need to provide and engineer yourself.
