Veronica® Aareff Antenna Accessories, Cable, Connectors, etc

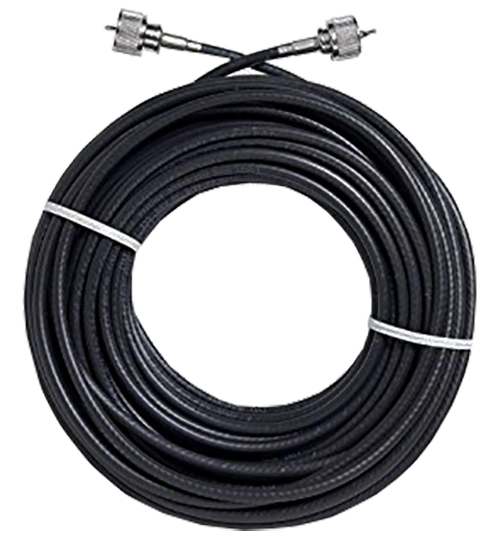

RG58 50 OHM COAX CABLE

Low cost 50 ohm cable suitable for short runs at VHF frequencies. External diameter 5mm, Loss per 10m 2dB at 100MHz. This item is sold in 2 different lengths either 5 metres (rg585) or 10 metres (rg5810) and fitted with PL259 plugs, we do not recommend using more than 10 metres. If coax run is longer than 10 metres we advise using LMR400.

rg58 50 ohm coax cable

LMR400 50 OHM COAX CABLE

High quality 50 ohm low loss cable recommended for long runs at VHF frequencies and above.External diameter 10mm, Loss per 10m 0.4dB at 100MHz. This is available in the following 5 lengths with high quality teflon pl259 plugs and ready to plug in and use on delivery. N type plugs also available on request by email at no extra charge.

lmr400 50 ohm coax cable

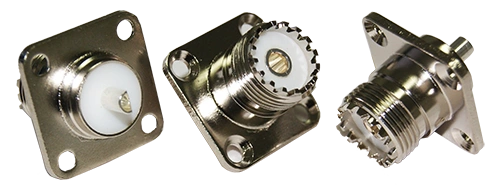

SO239 CHASSIS SOCKET

Usually chassis mounted on RF equipment. Ideal for the antenna output on transmitters fitted into case's.

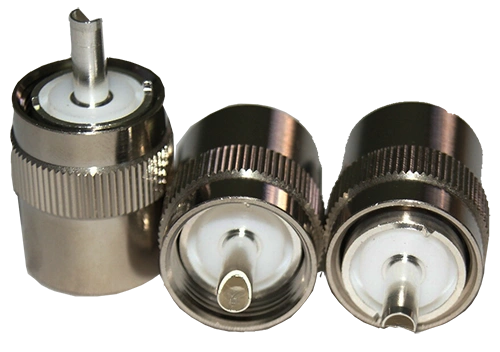

PL259 PLUG

One of the standard RF plugs used on most VHF equipment. Two versions of the plug are available with 5-6mm (pl259s) or 9-10mm (b190) cable entry Suitable cables are RG213 and RG58 which is available from Aareff.

pl259 plug

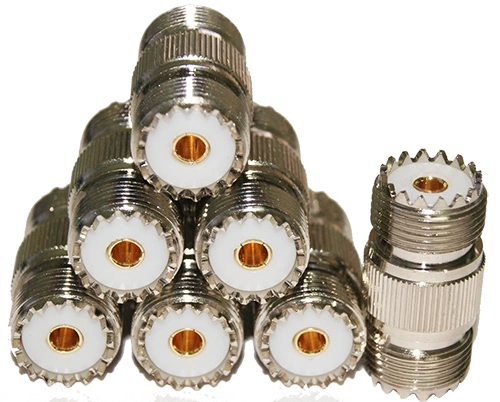

SO239 STRAIGHT ADAPTER

Two SO239 sockets back to back forming a barrel type connector allowing two PL259 plugs to be joined. Ideal for antenna extension cables.

so239 adapter

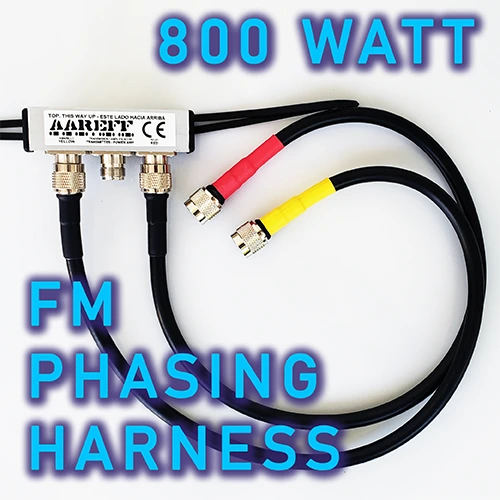

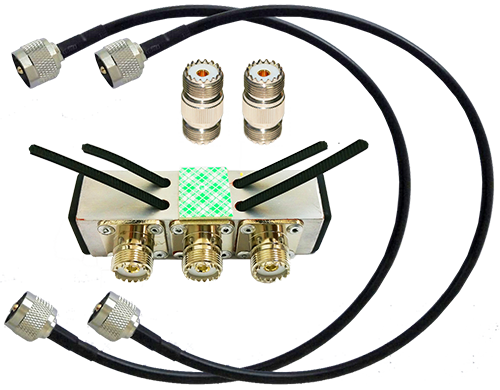

FM ANTENNA RF 50 OHM SPLITTER SET

This little box cable ties firmly to the pole or mast. The two 75 ohm cables use the outer two connectors on the box. When a 50 ohm signal is applied to the centre connector on the box, the two 75 ohm cables both output 50 ohms which can be connected to two 50 ohm antennas. Basically one 50 ohm input to two 50 ohm outputs. SO239 / PL259 Teflon connectors with gold plated pin. 500W max. AKA Phasing Harness.
