250W Professional FM Broadcast Power Amplifier



250W Professional FM Broadcast Amplifier. Overview
5 Years! Warranty
5 YEARS
LIMITED WARRANTY
MORE INFORMATION

Inc. Delivery to UNITED STATES

250 Watts with a high performance well installed antenna is a typical set up for a local radio station for a big town or small city. In rural areas up to 40 miles range is possible. We've sold 100s of these over the last 20 years and we never see them returned they just keep going without need for repairs.

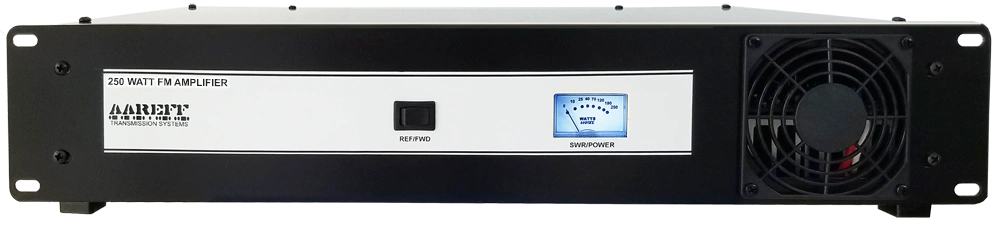

250W Professional FM Broadcast Power Amplifier. Wide View

AMPLIFIER 90-260V AC 250W FM 19 INCH 2U RACK MOUNT (250wntap)
US$ 1333

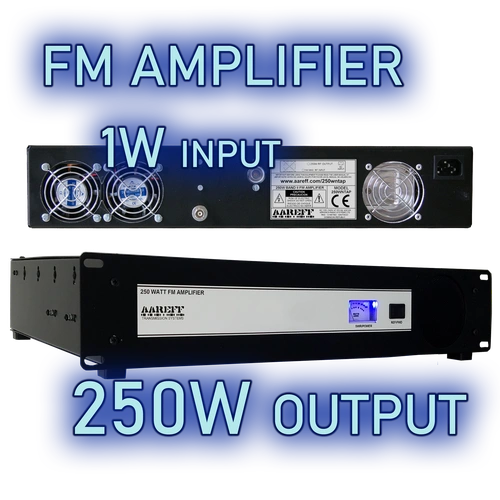

1 Watt Drive (can be more on request!)

Our amplifiers have a uniform input requirement of 1W. In other words, when driven with 1W of power, this amplifier is capable of producing 250W of RF output continuously, while still adhering to global technical regulations.

Should you need a different input power level, there is no issue, as we can readily accommodate your request. Simply send us an email or message us using the box below.

Temperature Resilience

This unit is designed with high reliability in mind. The cooling system incorporates one front 80mm fan to force cool the RF heatsinks and two 60 mm fans extracting from them. There is an additional 60mm fan to cool the power supplies. The amplifier is cool to touch by hand, even when we tested it in Spain, in summer, outside at ambient temperatures in excess of 40C. To maintain long term reliability the power amplifiers are fitted with two 150 watt Mosfets. This gives generous power headroom and the capability of Non-Stop high reliability operation anywhere in the world.

VSWR Resilience

Under severe load mismatch conditions (poor SWR, Return Loss) the unit automatically folds back the power to a safe level to protect itself, the antenna and cables from damage. When the load becomes again, full power restores automatically and instantly. The front panel has a forward and reflected power meter, so you can monitor the state of your antenna all the time.

High Stability

Our transmitters and amplifiers maintain their power and spectrum purity consistently, even if there is a VSWR mismatch, temperature fluctuation, or incorrect supply voltages. These devices are designed to perform reliably in challenging environments while still meeting the International Telecommunications Union (ITU) standards without fail.

Global Voltage Compatibility

All AC version of this product is truly globally compatible, you can plug it into any AC outlet in the world from 90 to 260V at 50 or 60Hz

12V and 48V DC Option

The regular version of this unit is 90 to 260V AC. However we can also manufacture it for 12V or 48V DC. To the best of our knowledge, in the entire world, Only We Make 12V DC FM Broadcasting Transmitters and Amplifiers up to RF Power Outputs of 250W.

Applications include mobile setups where only a car or vehicle battery is available. We have a perfect Magnetic Mount FM Antenna for mobile setups. Also fixed installations with connection to solar battery systems of 12V and 48V DC

We default ship the AC version. If you want the 12 or 48V DC version, it's important you notify us by email when you make your order.

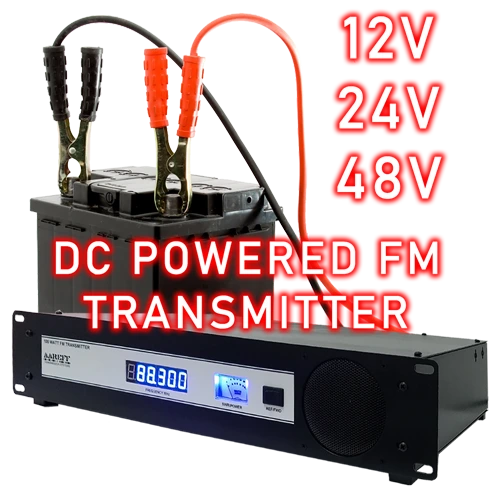

12V DC 250W FM Transmitter


Antennas

The model will work with our 50 ohm antennas listed below:

Vertical 5/8 Wave
2 Way Stacked Dipole
4 Way Stacked Dipole
8 Way Stacked Dipole
Circular Dipole
Folded Dipole

Do You Have A Question?

Email Address

Phone Number

Compliance

This amplifier complies with EMC, Voltage Safety and RTTE Harmonised Standards laid down by the European Union. It's CE marked with a Declaration of Conformity. More information HERE

All stated measurements were made at 220VAC at 27 Degrees Celsius ambient temperature unless stated.

User Manual Click Here
RF Power Output Adj. 250 Watts into 50 ohms
Power Input 900 to 1400mW (1.4W MAX.)
Spurious Emissions Less than -75 dB ref to carrier
Harmonic Emissions Less than -70 dB ref to carrier
Freq Range 87.5 to 108 MHz
Residual AM Less than 0.5 %
Synchronous AM Less than 0.5 %
RF Ruggedness Any VSWR phase for length of time
Output Connector N-Female
Input Connector BNC
Operating Temp -20 to +40 Deg C
AC Input Voltage 90-264 V AC 47-63 Hz
AC Input Power 480W Continuous for 250W RF OUT with RF SWR less than 1.5
Working Humidity 20-90% RH non-condensing
Safety Standards UL60950-1 TUV EN60950-1 BSMI CNS14336 CCC GB4943 J60950-1 approved
EMC Emission Compliance to EN55022 class B EN61000-3-2 3 FCC PART 15 / CISPR22 class B CNS13438 class B GB17625.1
EMC Immunity Compliance to EN61000-4-2 3 4 5 6 8 11 light industry level criteria A
