10W Professional FM Radio Transmitter
- SUPER SILENT
- STEREO WITH AUDIO PROCESSING OPTION
- RDS OPTION
- 12VDC or 90-260VAC OPTION
- USB 192 KHz 24 bit OPTION
- INCLUDES SHIPPING
- 5 YEAR WARRANTY
- EXCEEDS CE/FCC TECHNICAL SPECIFICATION
|
LIMITED WARRANTY |
Suitability
This transmitter is perfect and ideal for large campus, college, type radio. Also for Hospital type radio with large grounds. Special events like carnivals etc. that need maybe 1 to 5 miles range will find this transmitter the right size.
Which Version Do You Need?
These are the two main versions of this transmitter:
◼ Stereo with RDS and Audio Processing Version
◼ MPX Version
These two versions cover 90% of all customer requirements. Other custom versions are available such as stereo only, no RDS, no processing etc. which we can also make if that's what you require.
You will find these two main versions shown in detail in the two following sections with descriptions of what they do and how they work. You should also see the price, INCLUDING delivery, to your country.
If you are still unsure, you are always welcome to contact us at em: info@aareff.com or ws: +1 829 6980733 and we're more than happy to advise you.
Do You Have A Question?
Stereo, RDS, and Audio Processing Version
If you're unsure which version to choose, this is the ideal option. It automatically adjusts audio levels, ensuring that your 10 watt transmitter remains within the legal specifications set by state regulators. This makes it a great choice for beginners.
Professionals will also appreciate this version as it eliminates the hassle of manual adjustments. Housed in a single enclosure, it includes everything needed for optimal performance. The built-in audio processing ensures a loud yet legally compliant audio level, preventing over-deviation and regulatory issues. Achieving the perfect balance between maximum loudness and compliance is crucial, and this version, with stereo functionality and internal audio processors, accomplishes just that.
-500.webp)

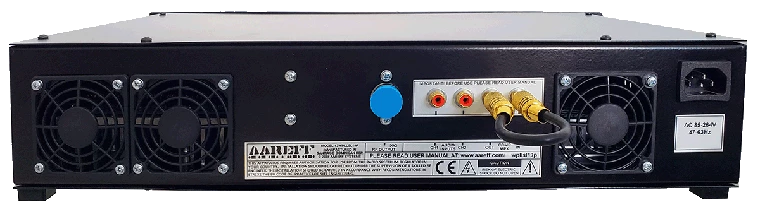

The audio inputs conform to the industry standard: 600 ohm +4 dBu balanced, using XLR connectors.
Additionally, this version INCLUDES RDS, allowing your station name and other information to scroll across car radio displays.
This is not just ordinary RDS; it features fully programmable dynamic RDS. By connecting the transmitter to a PC via USB, you can modify the RDS data in real-time using the USB PC CONTROL shown below.
Flat 30Hz to 76KHz MPX Input
We have this version available for Users with experience that prefer straight raw MPX input.
Low frequency audio response is the holy grail for multiband audio processors, they need it.
As you can see from the image, the 160Hz square wave is very square with no tilting making it perfect for use with Orban, Inovonics, Omnia, Stereo Tool and other commercial audio processors.
This setup uses a Hartley-based, lightly coupled push-push VCO that exhibits extraordinary stability, to the point where it deviates by less than 10 kHz from its designated frequency on its own, even when the DSS and PLL are switched off.
-500.webp)
Because this VCO is so inherently steady, the PLL only has to make minor corrections to maintain the frequency within about 300 Hz, effectively just giving it a slight nudge. Consequently, the audio remains very clean, as noted previously, and the PLL’s control voltage can be heavily low-pass filtered to just a few hertz. Such a slow loop filter ensures that low frequencies around 30 Hz are not misread as frequency drift, passing unaltered to the varicap. This preserves the essential low-end audio response needed for high-performance audio processors.
USB PC/RDS CONTROL
Download our free PC app that connects 'plug and play' to the transmitter / PLL DDS exciter via USB. You can see the PLL status and change the frequency and power directly from the PC interface. If you choose to add the optional RDS card, you can also change the PI, PTY and scrolling text of the radio from the interface.
Below are the download links for Windows:
https://www.aareff.com/1wpllm/pll14.4/pll14.exe
https://www.aareff.com/1wpllm/pll14.4/pll14.zip
By clicking on these links, Windows may show you a warning that the software is from an unknown publisher. We assure you that we wrote the apps and the files are perfectly safe, virus-free and come from our registered domain www.aareff.com, which you can verify at https://lookup.icann.org/en/lookup
Normal state when the device is connected: the PLL is LOCKED with an output power of 0.85W and a PLL phase of 2.33V
This shows what happens if the device loses its lock. We simulated a failure by placing our fingers on the oscillator coils.
This shows the return to normal with the user command FREQ:106.7 typed in the input box below. A value between 87.5 and 108.0 MHz can be set.
After pressing 'Send:' the display returns UPDATED FREQ 106.7 along with other technical information. This causes the transmitter to change frequency.
This shows another command, RDS-PI:ABCD typed for devices with the RDS card.
After pressing 'Send': the display returns UPDATED RDS-PI:ABCD instantly updating the RDS PI code.
This shows two additional examples of RDS commands:
RDS-TEXT:[write your message here]
RDS-PTY:[number from 0 to 31]
Text is plain ASCII up to 60 chars and valid PTY Codes shown below.
Shown below are the current commands available for USB PC Control and also the PTY codes for program type. We will be making further developments, improvements and more useful commands to this app in the near future. Keep checking this page for details.
◼ DEVICE-ID
◼ STATUS
◼ FREQ:[87.5 to 108.0]
◼ DDS-ADJ:[-1,0 or 1]
◼ PWR:[0 to 1]
◼ RDS-PTY: [0 to 31 list of PTY codes]
◼ RDS-PI: [0000 to FFFF]
◼ RDS-TEXT:[any string up to 60 chars.]
◼ RDS-ON
◼ RDS-OFF
Antennas
On delivery the equipment is ready to plug in and use with any suitable 50 ohm antenna system such as our:
• SINGLE DIPOLE
• 4.8dBi 2 DIPOLES
• 7.8dBi 4 DIPOLES
• 10.8dBi 8 DIPOLES
• 4.8dBi 5/8 ANTENNA
• -0.8dBi CIRC. DIPOLE
• FOLDED DIPOLE
Our system package the 10W EIRP system includes this transmitter with a dipole antenna and very low loss LMR400 cable to give you a full system that will comply with the regulations of the European Union and most other countries in the world.
Reliability
The power transistor used in the output stage is rated at 15 watts minimum, basically it's over engineered. This is the difference between our transmitters and the Chinese transmitters. The Chinese use semiconductors that are just enough and no more. This is okay until there is an accidental antenna fault, which happens frequently, and the Chinese is one is toast !!. In the meantime, our transmitter continues happily without damage.
Construction

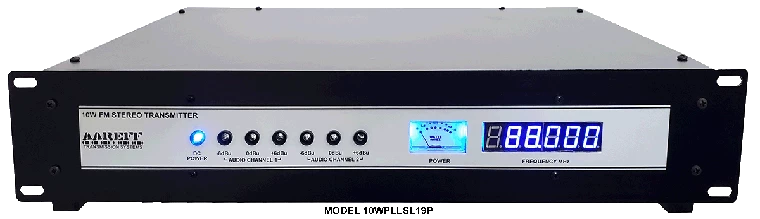

The enclosure is made in strong 16 gauge steel, powder coated and baked in satin black. This leaves a tough, durable surface that will never rot or corrode and be cleaned to shine for decades. The front panel is 19 inch across and 2U (3.5 inch) high with a depth of 12 inches, so it will fit with ease into a standard rack. It is very strong and difficult to damage even under extreme handling.
Configuration
When we test this unit we need to test it at some frequency, it's obviously better if we test it at the frequency you want to us it on, then you can use it straight out of the box on delivery. But if you don't know the frequency, that's okay, the frequency, FM deviation and power is easy to set in a few minutes on the underside panel controls.
Compliance
The stereo version with audio processing and limiting meets all the regulatory standards required out of the box and pre configured. In fact if you send us a copy of your permit and it's conditions, we will set it up exactly to the specification. This equipment complies with EU/CE harmonised standards and FCC technical requirements for FM broadcasting. More information HERE
RF Specification
All stated measurements were made at 220VAC at 27 Deg. Celsius ambient temperature unless stated.
| Power Output | Adj. 1-10 Watts into 50 ohms |
| Spurious Emissions | Less than -75 dB ref to carrier |
| Harmonic Emissions | Less than -70 dB ref to carrier |
| Freq Stability | +/- 1 KHz max. typ. +/-300 Hz |
| Deviation Sensitivity Stability | +/-2 % max |
| Freq Fine Adj | > +/- 1000 Hz |
| Freq Range | 87.5 to 108 MHz in 100 KHz steps |
| Out of Lock RF Muting | Less than -70 dB ref to carrier |
| Residual AM | Less than 0.5 % |
| Synchronous AM | Less than 0.5 % |
| RF Ruggedness | Any VSWR phase or length of time |
| Output Connector | N-Female |
| Operating Temp | -20 to +40 Deg C |
AF Specification
| Pre-emphasis | (50 uS/ 75 uS/ None) Selectable | |
| Audio Input Connector | Phono/ RCA type unbalanced sockets | |
| Audio Input Sensitivity | +4 dBu for +/- 75 KHz dev. | |
| Version | MPX | Stereo and Audio Processor |
| Signal To Noise Ratio | 80dB | 65dB |
| Frequency Response | 30Hz-76KHz | 30Hz-15KHz |
| Audio Distortion | Better than 0.1% / 60dB THD | Better than 0.1% / 60dB THD |
AC Specification
| Input Voltage | 90-264 V AC 135-370 V DC 47-63 Hz |
| Input Power | 27W for 10W RF OUT with RF SWR less than 1.5 |
| Working Humidity | 20-90% RH non-condensing |
| Safety Standards | UL60950-1 TUV EN60950-1 BSMI CNS14336 CCC GB4943 J60950-1 approved |
| EMC Emission | Compliance to EN55022 class B EN61000-3-2 3 FCC PART 15 / CISPR22 class B CNS13438 class B GB17625.1 |
| EMC Immunity | Compliance to EN61000-4-2 3 4 5 6 8 11 light industry level criteria A |
