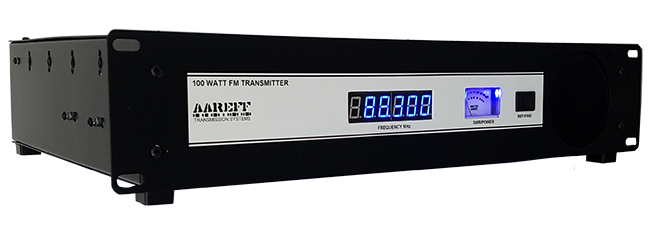

Veronica® Aareff 100W FM Broadcasting Transmitter

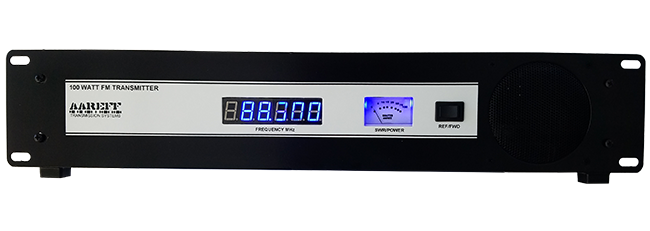

Veronica Aareff 100W FM Broadcasting Transmitter 1

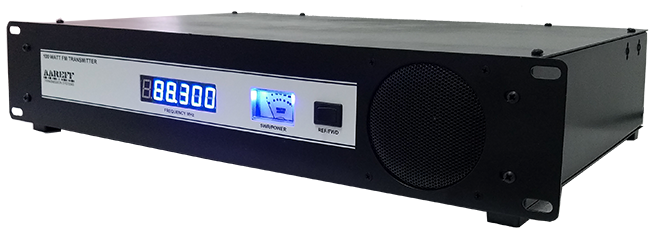

Veronica Aareff 100W FM Broadcasting Transmitter 2

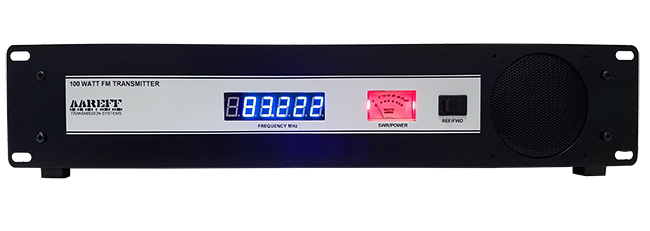

Veronica Aareff 100W FM Broadcasting Transmitter 3

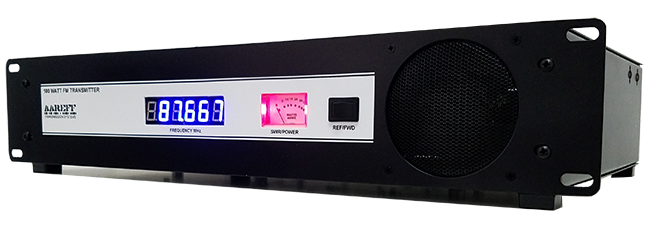

Veronica Aareff 100W FM Broadcasting Transmitter 4

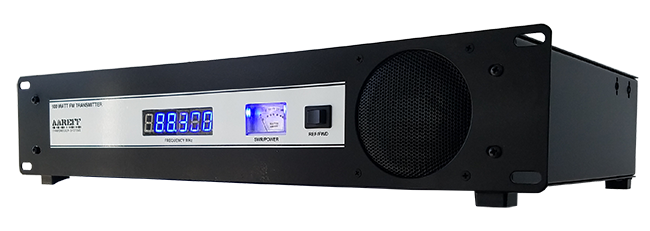

Veronica Aareff 100W FM Broadcasting Transmitter 4
Veronica Aareff 100W FM Broadcasting Transmitter 4
Veronica Aareff 100W FM Broadcasting Transmitter 4
Veronica Aareff 100W FM Broadcasting Transmitter 4

Which Version Do You Need?

MPX. - This is the low cost version, but is not intended for the novice or beginners. The audio input is raw MPX without any audio limiting or stereo coder circuitry, this must be provided externally in accordance with the recommendations of http://www.aareff.com/ETR132.pdf

Stereo Version. - This is identical to Mono/MPX version but with a stereo coder built in. RDS cannot be used with this. Again it does not include audio limiting, so it's not recommended for the novice or beginner. External limiting need to comply with the recommendations of http://www.aareff.com/ETR132.pdf

Stereo and Audio Processing. - Most small radio stations and beginners will use this version, this is because it includes audio processing circuitry and suitable limiting to keep the transmitter in compliance with the maximum bandwidth permitted by the international regulations.

Do You Have A Question?

High Specification and Durable

As with all our transmitters, we like the simple looking exterior, inside is another story. The 100 Watt FM Transmitter has a very high specification and is more than a match in technical quality to any of the other professional FM transmitters on the market at much higher prices. By not including frills such as LCD displays and other gimmicks that don't improve the sound quality or reliability, we can make this transmitter at a price that is affordable. The previous model of 10 years endured countries of the world with the worst environments and the hottest climates and worked great, the new model 100W 19 inch transmitter is fantastic

High Stability VHF FM Generation

The actual RF signal is generated using our 1W PLL driver internally. This driver is built, designed and proven over many years as the most cost effective high frequency FM signal generator on the market, it is the broadcast engineers choice. You can get more details on this and the specification at 1w-pll-fm-transmitter-kit/

Two Year Warranty

This FM transmitter along with all our other products comes with a 2 year guarantee and our reputation of high reliability. On delivery the equipment is ready to plug in and use with any suitable 50 ohm antenna system such as our Vertical 5/8 Wave, Single Dipole or Stacked Dipole.

24/7 Non-Stop in High Temperature

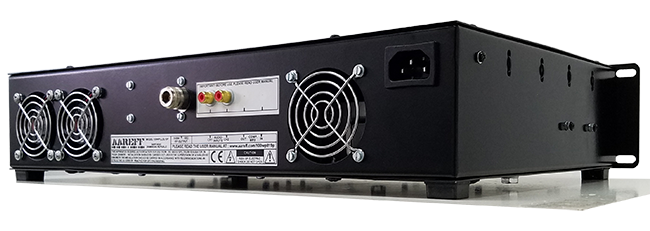

This unit is designed with high reliability in mind. The cooling system incorporates. Two 60 mm fans keep the heatsinks in this unit cool to touch by hand, even when we tested it in Spain in summer at ambient temperatures in excess of 40 deg C. To maintain long term RF Output reliability the linear power amplifier is fitted with a 150 watt Mosfet Device. Due to this design the 100 watt FM transmitter is capable of Non-Stop Operation anywhere in the world with high reliability.

Full High SWR Protection

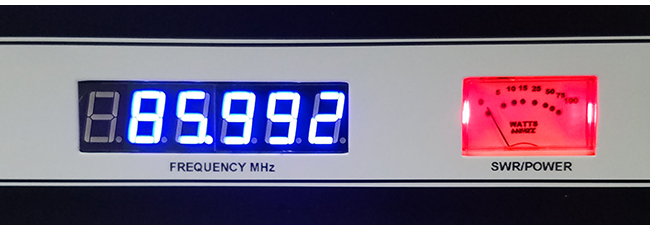

Under severe load mismatch conditions (poor SWR, Return Loss) the amplifier will automatically foldback the power to a safe level to protect itself, the antenna and cables from damage. When the load becomes good, full power automatically restores. On the front panel is a neat little meter lit up with intense blue LED's to indicate forward and reflected power. The amplifier is fully protected from poor SWR and reflected power for any duration of time. Expensive test equipment is NOT required, set up is a simple task using the internal LED's.

Meets EU/CE and FCC Technical Standards

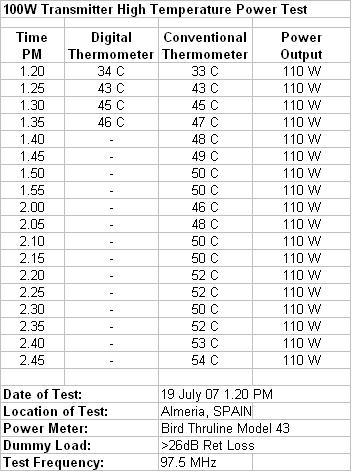

An MRF151 easily provides 100 Watts of power continuously day in, day out, in the main amplifier block (click for temp test results). The amplifier output is low pass filtered to ensure that any spurious and harmonic signals remain within the tough EU spec of -75dB rtc. (Sec 4.11.1 ETS 300 384), this in turn easily puts them within the FCC and Industry Canada spec.

Frequency and Power Adjustments

By adjusting a small control inside the unit the RF power output level can be set smoothly anywhere from 1W to 100W. Any frequency between 87.5 to 108 MHz can be accurately programmed on the internal dip switches. Pre-emphasis time constants of 50uS, 75uS (USA) or none are easy to select on the Internal jumpers.

RF Technical Specifications

Audio Input Sensitivity +4 dBu for +/- 75 KHz dev.
Freq Stability +/- 1 KHz max. typ. +/-300 Hz
Deviation Sensitivity Stability +/-2 % max
Freq Fine Adj > +/- 1000 Hz
Pre-emphasis (50 uS/ 75 uS/ None) Selectable
Audio Input Connector Phono/ RCA type unbalanced sockets
Power Output Adj. 5 to 100 Watt into 50 ohms
Freq Range 87.5 to 108 MHz in 100 KHz steps
Spurious Emissions Less than -75 dB ref to carrier
Harmonic Emissions Less than -70 dB ref to carrier
Out of Lock RF Muting Less than -70 dB ref to carrier
Residual AM Less than 0.5 %
Synchronous AM Less than 0.5 %
RF Ruggedness Any VSWR phase or length of time
Output Connector N-Type (or optional SO-239 type)
Operating Temp -20 to +40 Deg C

AF Technical Specifications

Version MPX StereoStereo and Audio Processor
Signal To Noise Ratio80dB 65dB 65dB
Frequency Response 30Hz-76KHz 30Hz-15KHz 30Hz-15KHz
Audio Distortion 0.2% THD Max0.2% THD Max 0.2% THD Max (at MPX section)
Stereo Pilot Tone None 19KHz +/-0.2Hz19KHz +/-0.2Hz

AC Technical Specification

Model SP-240-48
Input Voltage 88 ~ 264VAC 124 ~ 370VDC 47-63 Hz
Power Factor PF more than 0.95/230VAC PF more than 0.98/115VAC at full load
Efficiency 87%
Input Power 200W max. for 100W RF OUT with RF SWR less than 1.5
Working Humidity 20-90% RH non-condensing
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Emission Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC Immunity Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
