Barix Instreamer and Exstreamer STL Set

Barix Instreamer and Exstreamer set

The Barix Instreamer and Exstreamer set are exactly what you need to create the high quality Studio To Transmitter Link or STL over the internet connection. The Instreamer sends the audio signal and the Exstreamer receives the audio signal.

2 YEARS
LIMITED WARRANTY MORE INFORMATION

Do You Have A Question?

MP3 encoding/decoding	32 64 96 192 320 kbs
Protocols	TCP/IP UDP RTP DHCP SNMP SIP
Ethernet	RJ45 10/100Mbps auto
Sample Rate	16bit 8 16 22.05 24 32 44.1 48 kHz
Compression	G.711 uLaw aLaw
Audio Connectors	Unbalanced 2k imp.
Clipping Level	5.3 dBu 4 Vpp
Frequency Response (-3dB)	20 to 20000Hz
Signal to Noise Ratio	89dB
THD	<0.03%
Stereo crosstalk	-89dB
DC Power	5V 1A max.

Sending The Audio Signal From The Studio

The left and right audio signals at line level 0dBu to +4dBu (unbalanced and adjustable) plug directly into the rear of the Instreamer via standard RCA/Phono sockets. This audio signal is then converted to a digital stream (multiple standards available and selectable) that outputs from the rear panel via an RJ45 socket. The RJ45 socket is then connected via a standard RJ45 to RJ45 Cat5 network/Ethernet cable to the internet router.

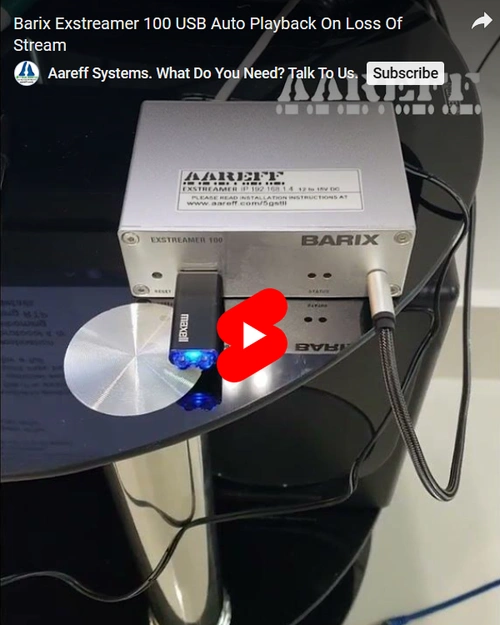

The YouTube video below is a demonstration of the automatic USB audio start up when the main stream goes down.

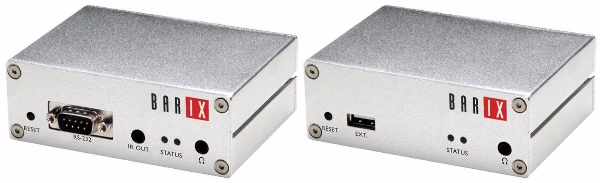

Barix Instreamer and Exstreamer STL Set View From Front

Receiving The Audio Signal At The Transmitter Site

The internet router connects the digital stream to Exstreamer via a standard RJ45 to RJ45 Cat5 network/Ethernet cable. This digital stream is then converted back to the original left and right audio signals at line level 0dBu to +4dBu (unbalanced and adjustable).

Both units are configured and adjusted by a web interface that is accessed by a computer that is connected to the same router by WiFi or a network cable. These units do not require a computer for operation, the computer is only required to make adjustments or change the configuration. The Instreamer and Exstreamer, contain their own mini computer or microprocessor and will operate with the internet router without a computer in sight. Power supplies are included for 110/115/120 or 220/230/240 VAC to operate the units. The DC voltage input is 9 to 30 V (4 watts) so connection for battery backup is very easy.

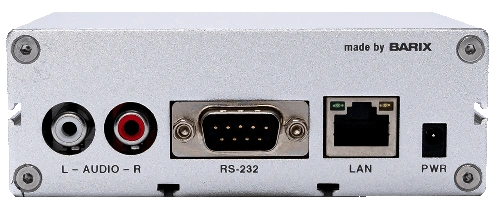

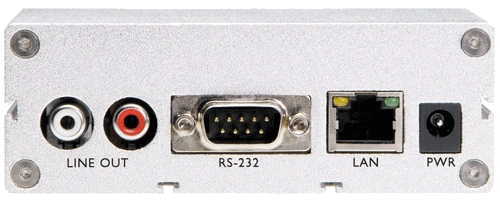

Barix Instreamer and Exstreamer STL Set View From Back

USER MANUAL

ROHS

All components used in this apparatus are RoHS compliant and do not contain above the specified limits in any of the following restricted substances:

Lead
Hexavalent Chromium
Mercury
Cadmium
Polybrominated Biphenyls (PBB's)
Polybrominated Diphenylethers (PBDE's)

PRODUCT END OF LIFE

This apparatus must NOT be disposed of with other domestic waste.

We are fully committed to maintaining our responsibilities to the environment. Owners of apparatus that has reached the end of it's useful life can return it to us for recycling, recondition, reuse or proper disposal. You will be required to pay lowest cost postal service available to ship the apparatus to us. Before shipping please contact us for more important information.
