User Manual FM Repeater Receiving Equipment

LAYOUT OF ANTENNAS

Veronica® Aareff FM repeater translator antenna layout

INTENDED USE

i. The various pieces of equipment in this document are only for use permanently at a pre-defined location with an FM transmitter system and transmitter antenna (not included) that has a license or authorisation from the radio spectrum regulator in your country or EU member state.

ii. The installer must have competent RF engineering skills at their disposal, be EMC aware and understand radio frequency systems. The final installation should be in accordance with the site engineering document at http://www.aareff.com/ETR132.pdf The radio station management must assign a responsible person to the transmission equipment and installation.

EQUIPMENT LAYOUT

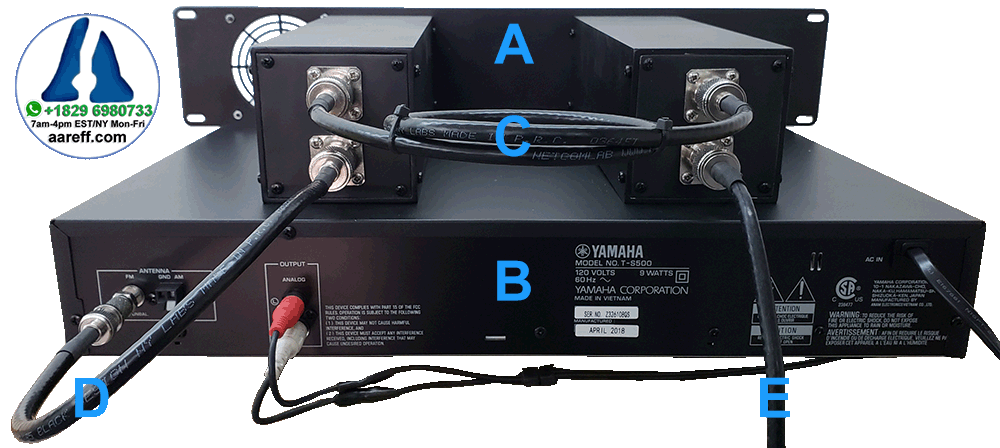

Veronica® Aareff FM repeater translator tuner and filter layout

EQUIPMENT CHECKLIST

IdentDescription
A Band Stop / Notch Filter
B Branded High Grade FM Tuner
C Quarter Wave Filter Cable
D Filter To Tuner Cable
E Yagi Receiver Antenna Downlead Cable

YAGI ANTENNA CHECKLIST

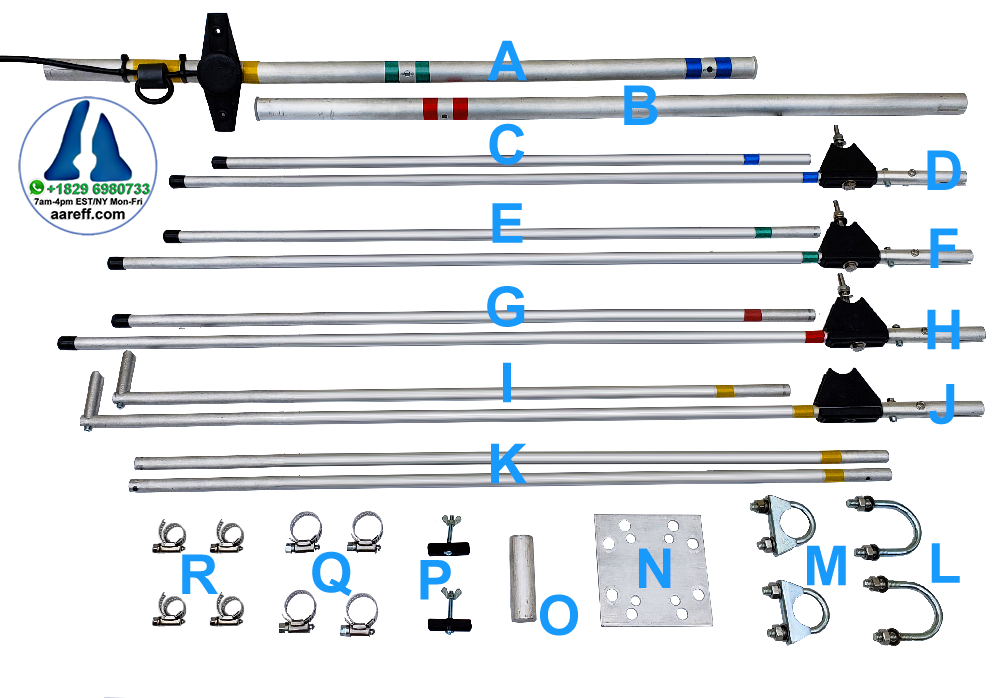

Veronica® Aareff four element yagi parts list
IdentQtyDescription
A 1Boom front piece
B 1Boom back piece
C 1Second director top piece
D 1Second director bottom piece
E 1First director top piece
F 1First director bottom piece
G 1Reflector top piece
H 1Reflector bottom piece
I 1Active element top piece
J 1Active element bottom piece
K 2Active element feed pieces
L 2Mast or pole 38mm U-bolts
M 2Boom 25mm U-bolts
N 1Boom to mast clamping plate
O 1Boom front and back union piece
P 2Active element feed clamps
Q 4Boom 25mm tube clamps
R 4Director and reflector 16mm tube clamps

YAGI ANTENNA CONSTRUCTION

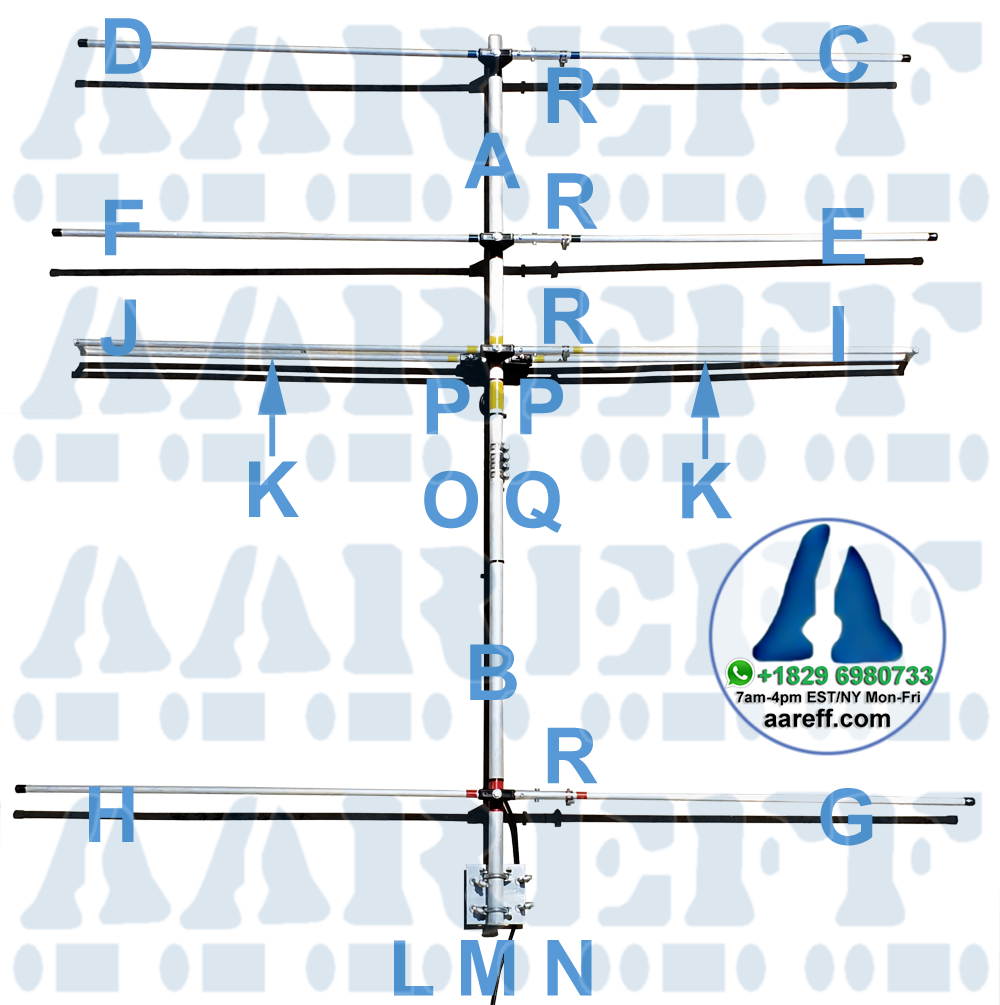

Veronica® Aareff four element yagi construction

ROHS

All components used in this apparatus are RoHS compliant and do not contain above the specified limits in any of the following restricted substances:
