This system includes everything you need to get the radio transmission side of your station up and running on delivery. The only thing you need to provide is a pole, mast or tower to put the antennas on and a standard stereo line (0dBm) audio signal from your studio or link equipment.
Instructions are supplied to show the station engineer how to set this system to any frequency from 87.5 - 108.0 MHz. However, when we assemble this system we have to test and set it to some frequency, please select the frequency in price panel above that you would like it set to on delivery.
The combination of 200 Watts transmitter power, 20 meters of foam grade LMR400 and a two way stacked dipole antenna or 5/8 antenna results in a radiated power of 500 Watts. To a listener at the horizon this is equal and identical to the signal received from a 500 Watts transmitter with a single dipole antenna.

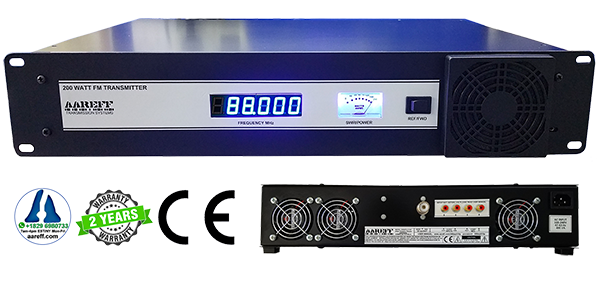

This neat, simple and great looking 2U 19" rack unit produces the high quality FM stereo signal at your chosen frequency. This produces 200 Watts of transmitter power and will operate with ease at full power 24 hours a day non stop in any country and with any AC voltage in the world. The amplifier has a neat little meter on the front panel lit up with intense blue LED's to indicate forward and reflected power. The amplifier is fully protected from poor SWR and return loss of level for any duration of time. The limiter and stereo coder can be completely disabled if you want to use an external processor such as Orban, Inovonics or PC generated MPX/RDS. This unit complies with European standards ETS 300384 for R&TTE, EN 301 489-11 for EMC and (LVD) 2006/95/EC for safety.

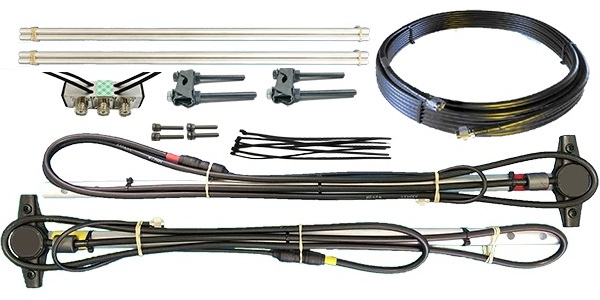

20 Meter Antenna Cable - This cable is high quality foam and carries the radio signal 20 meters to the antenna, this would normally be used for stations with towers, or masts of up to 15 meters in height.
2 Way +3dB Stacked Dipole or 5/8 Vertical Antenna (+4.8dB Gain) - The two way, tier or stacked dipole package includes two dipoles, phased leads and splitter box. Alternatively the 5/8 with the same gain is just as formidable. Both antennas multiply the power from the antenna cable by 2.9 times horizontally to the horizon making sure maximum signal is efficiently put in the right place and not wasted into space or ground.
Over the last 23 years in Africa and Middle East alone we sold our systems into Congo, Uganda, Liberia, Zambia, Yemen, Rep South Africa, Oman, United Arab Emirates, Tanzania, Southern Sudan, Kenya, Ghana, Gambia, Nigeria and Niger. Our transmitters are very popular in very hot climates as they handle the heat and the dust very well under 24/7 operation.
This FM transmitter system along with all our other products comes with a limited 2 year warranty (see warranty conditions)
We have tried to think of everything you will need to save you time when doing the installation. The package also includes, antenna mounting brackets, nuts and bolts, even the cable ties to strap your antenna cable to the mast. All you need to provide, is a tower or mast (at least 15 meters in height) to install the antenna system on and a standard line level stereo audio feed from your studio mixer or link.
We are primarily engineers with a passion for radio, not sales people. If you have any technical questions please feel free to email us.
