Veronica® Aareff 12W ERP FM Broadcasting System

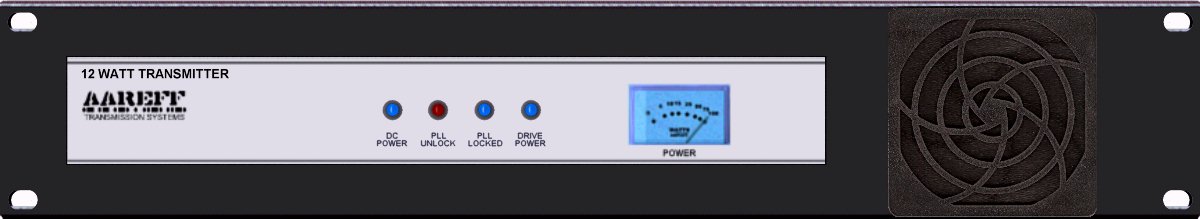

Veronica® Aareff 12W FM Broadcasting Transmitter

Complete Package

This little package which includes our tuned dipole antenna with 12 metres of cable and our 12W transmitter is for those situations where you need to cover a village, but not quite a town, or maybe a suburb of a town. We believe 12W radiated from the antenna is just about right for this. In the UK often Ofcom will licence small stations for special events with a power of 10W ERP, this system is pefect for this application as the power can be adjusted down from 12W ERP to 10W ERP very easily. In fact the p˛wer can be adjusted anywhere between 1W and 12W ERP.

System Package Contents

12W Transmitter
Option 1 - MPX
Option 2 - Stereo
Option 3 - Stereo and Audio Processing
Single Dipole +1.8dBi
12m Coaxial Cable -1.8dB
All Interconnectiong Cables
Antenna Mounting Brackets

MPX, Stereo or Audio Processing?

Not sure if you need MPX, Stereo or Stereo with Audio Processing? This is all explained at the 12W FM Transmitter page.

Operates On Virtually Any Power Source

Any frequency between 87.5 to 108MHz can be accurately programmed on the internal dip switches accessible from the underside panel in a few minutes. Expensive test equipment is NOT required, set up is a simple task using the LED's on the front panel. The transmitter operates from a 15DC supply or the supplied AC adapter (100 - 250VAC). This makes it suitable for use on a standard power pack or automobile power system anywhere around the world.

Two Year Warranty

On delivery the equipment is ready to plug in and use. This FM transmitter system along with all our other products comes with a limited 2 year warranty (see warranty conditions)

Compliance

When used with suitable audio limiting equipment, this complete set of equipment used as delivered without any modifications, including it's power supply, the dipole antenna and the 12 metres of antenna cable, complies with EU Telecommunications ETS 300384, EMC EN 301 489-11 and Safety LVD 2006/95/ and also ITU-R BS.450-3 (11/01) FM Broadcasting at VHF. If you are a novice or beginner and you don't have no knowledge of audio limiting, processing and compression you should purchase the stereo version with audio processing to maintain compliance with the regulations.

Simple Set Up

Instructions are supplied to show the station engineer how to set this system to any frequency from 87.5 - 108.0 MHz. However, when we assemble this system we have to test and set it to some frequency, please select the frequency in price panel below that you would like it set to on delivery.
