User Manual - Original Veronica® 1W PLL 11
1W PLL previous versions: PLL10 PLL11 PLL12 PLL14.4.

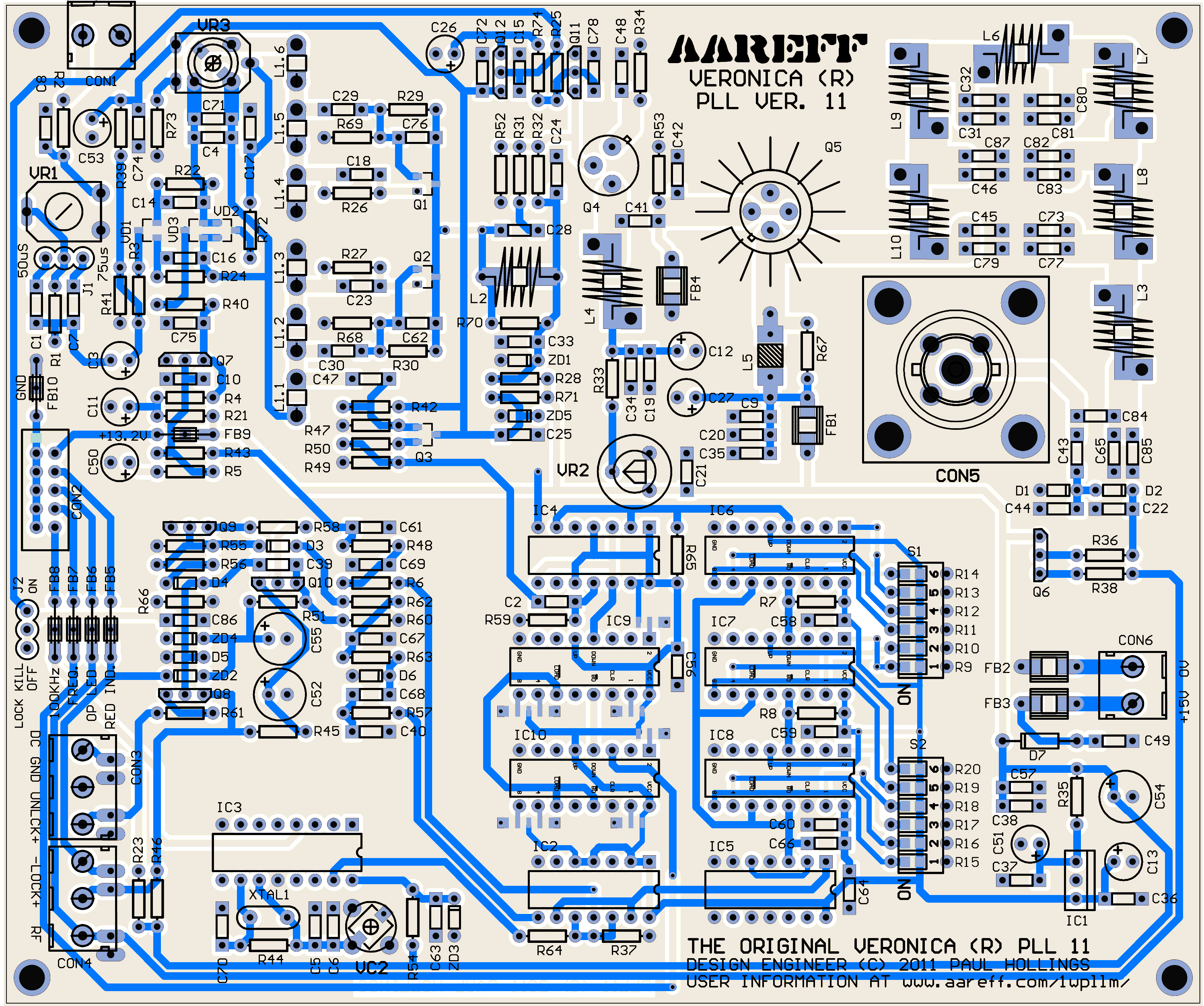

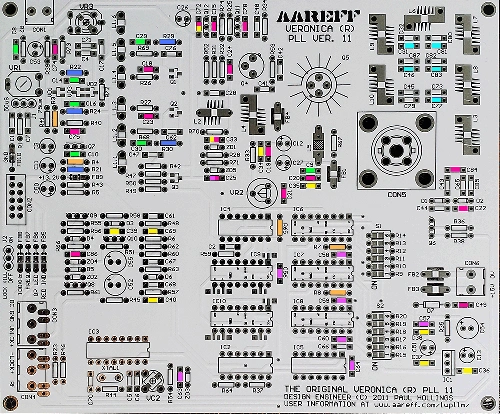

PCB LAYOUT
COMPONENTS (all models)
| SMALL SMD | VALUE |
|---|---|
| C15, C33, C17, C18, C18, C23, C23, C19, C20, C21, C22, C24, C25, C49, C72, C72, C74, C75, C78, C84, C86 | 1n (b159) |
| C33, C34, C35, C36, C37, C38, C39, C40, C72, C72 | 10n (b196) |
| C56, C58, C59, C60, C63, C64, C69, C25 | 100n (b197) |
| C8, C9, C10, C29, C29, C30, C14, C16 | 100p (b158) |
| C31, C46, C77, C81, C83 | 39p (b154) |
| C44, C76, C62 | 2p2 (b238) |
| C41, C42 | 47p (b155) |
| C6, C30, | 15p (b180) |
| C2 | 2n2 (b164) |
| C47 | 33p (b153) |
| C66 | 150p (b69) |
| C70 | 82p (b157) |
| C79 | 27p (b152) |
| C85 | 22p (b154) |
| C28 | 10p | (b149)
| C71 | 5p6 | (b148)
| S1, S2 | 10K 0805 (0850-10k) |
| L1.1, L1.2, L1.3, L1.4, L1.5, L1.6 | 27nH (1210-27n) |
| Q1, Q2, Q3 | BFR93AW (b97) |
| VD1, VD3 | BB201 (b98) |
| AXIAL | VALUE |
|---|---|
| R21, R22, R24, R29, R30 | 3K3 (b29) |
| R3, R4, R7, R8, R65 | 10K (b35) |
| R5, R6, R39, R41, R42 | 15K (b37) |
| R58, R59, R66 | 2K2 (b27) |
| R26, R27, R31, R38 | 150R (b14) |
| R68, R69, R52 | 1K (b23) |
| R32, R56, R57, R74 | 5K6 (b32) |
| R54, R70 | 220R (b15) |
| R36, R37 | 1K5 (b25) |
| R71, R34, R35 | 22R (b4) |
| R2, R53 | 47R (b8) |
| R28, R50, R51 | 100R (b12) |
| R62, R63 | 12K (b36) |
| R1, R48 | 33K (b40) |
| R60, R33 | 270R (b16) |
| R23 | 680R (b21) |
| R61 | 10R (b2) |
| R46 | 15R (b3) |
| R45 | 33R (b6) |
| R49 | 390R (b18) |
| R64 | 1K8 (b26) |
| R25 | 4K7 (b31) |
| R40 | 6K8 (b33) |
| R55 | 47K (b42) |
| R44 | 100K (b46) |
| R47 | 22K (b38) |
| D1, D2, D3, D4, D5, D6 | 1N4148 (b58) |
| D7 | 1N4004 (b64) |
| ZD3, ZD5 | 11V (b62) |
| ZD4, R43 | 5V1 (b60) |
| ZD1, ZD2 | 7V5 (b61) |
| FB5, FB6, FB7, FB8, FB9 | 1t 22awg (301838)(b216) + 1n (b159) |
| FB1, FB2 | 1t 22awg (b216) |
| FB3 | 10R x 3 (b2) parallel |
| FB4 | 2t 28awg (b216) |
| FB10 | 1t 22awg (301838) |
| FLAT | VALUE |
|---|---|
| IC6, IC7, IC8 | 74LS193 (b79) |
| IC2 | 74LS86 (b85) |
| IC3 | CD4060 (b84) |
| IC4 | 74ALS74 (b83) |
| IC5 | CD4013 (b86) |
| VR1 | 10K (b12) |
| RADIAL | VALUE |
|---|---|
| Q6, Q8, Q9, Q11, Q12 | BC549 (b97) |
| Q7, Q10 | BC558 (b96) |
| Q4 | 2N4427 (b76) |
| Q5 | SD1127 (b75) |
| IC1 | 7805 (b118) |
| C11, C12, C27 | 47u (b171) |
| C3, C26, C53, C52, C54, C55 | 220u (b170) |
| C13, C51 | 1u (b168) |
| C2, C68 | 220n (b198) |
| C67 | 4n7 (b195) |
| C17 | 10u |
| C57 | 1000u |
| S1, S2 | 6w dip (b81) |
| VR2 | 500R (b91) |
| VC2 | 10p/15p/22p (b89) |
| XTAL1 | 6.4 MHZ (b71) |
| CONNECTORS | VALUE |
|---|---|
| CON1, CON6 | b116 |
| CON2 | b87 x 10 |
| CON3, CON4 | b147 |
| CON5 | N-Female (b222) |
| J2 | b87 x 3 + b88 |
| COILS | VALUE |
|---|---|
| L2 | 7mm x 5t 22awg (301838) |
| L3, L6, L7, L8, L9, L10 | 7mm 5t 16awg (1230996) |
| L4 | 5mm 4t 16awg (1230996) |
| L5 | 2K2 9t 28awg (845-460) |
| OTHER ITEMS | VALUE |
|---|---|
| m3 x 5 mm aluminium spacers (b221) | 4 |
| m3 nuts nyloc (b142) | 4 |
| m3 x 16mm screw (b115) | 4 |
| m3 spring washer (b107) | 4 |
| m3 plain washer (b113) | 4 |
| Push-On Black Heatsink (b109) | 1 |
| Red and Black DC Cable 50cm (xs69a) | 1 |
| PLL 11 PCB (pcb-1wpllm) | 1 |
| NOT FITTED |
|---|
| Q12 |
| C1, C4, C5, C7, C32, C45, C61, C65, C73, C80, C82, C87, C48 |
| R67, R72 |
| VR3 |
| VD2 |
SPECIAL MODIFICATION
C50 1uF (b168)
COMPONENTS (TRIMMER OPTION)
| COMPONENT | VALUE |
|---|---|
| VR3 | 22p (b89) |
| VD2 | NOT FITTED |
| C17 | NOT FITTED |
| R72 | NOT FITTED |
| R73 | NOT FITTED |
COMPONENTS (VR3 OPTION)
| COMPONENT | VALUE |
|---|---|
| VR3 | 10K (b12) |
| VD2 | BB201 (b98) |
| C17 | 1n (b159), 10u (b169) |
| R72 | 4K7 (b31) |
| R73 | 2K2 (b27) |
COMPONENTS (MPX/MONO OPTION)
| COMPONENT | VALUE |
|---|---|
| C1 | 1n5 (b162) |
| C7 | 2n2 (b164) |
| J1 | B87 x 3 + B88 |
COMPONENTS (FREQ. COUNT. OPTION)
| COMPONENT | VALUE |
|---|---|
| C1 | 1n5 (b162) |
| IC9, IC10 | 74LS193 (b79) |
COMPONENTS (MODULE ONLY OPTION)
| COMPONENT | VALUE |
|---|---|
| LED1 | 5mm LED BLUE DC IND. (b177) |
| LED2 | 5mm LED RED UNLOCK IND. (b174) |
| LED3 | 5mm LED BLUE LOCK IND. (b177) |
| LED4 | 5mm LED BLUE RF IND.(b177) |
PCB LAYOUT / FAULT FINDING
SCHEMATIC (PLL11)

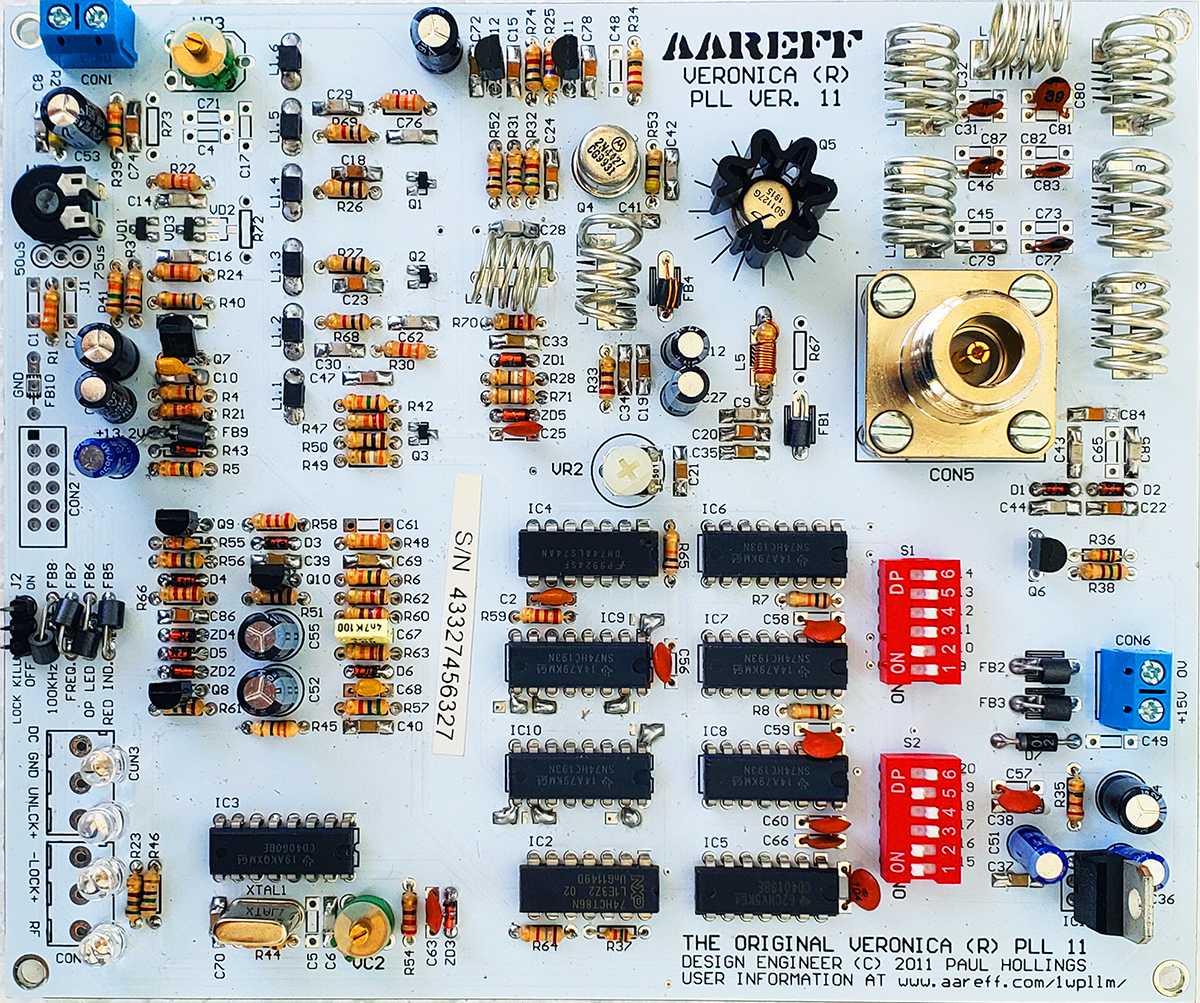

PCB LAYOUT / COMPONENTS FITTED
INTENDED USE / LEGAL ADVICE
This product is not intended for use on a 'stand alone' basis, it is sold as spare part/module sub assembly and is intended as a component for use in a fully assembled transmitter and/or transmission system that as a whole complies with the engineering requirements of ETS 300 384 and ETS 300 447. Use of this product on a 'stand alone' basis will in most countries of the world contravene the EMC compatibility regulations. It is the customer's responsibility to check relevant laws, directives and regulations before putting this product into service with an antenna system. You, the customer agree to defend, indemnify and hold harmless Aareff Systems Limited, it's employees and agents, from and against any claims, actions or demands, including without limitation legal and accounting fees, alleging or resulting from improper or unlawful use of this product.
CIRCUIT TESTING
If the 1 watt PLL is connected to a Veronica / Aareff Limiter Compressor or a Stereo Coder, pre-emphasis is not required. To disable the pre-emphasis, do not select 50uS or 75uS and remove the jumper completely. Store the jumper in a safe place just in case you need to restore the pre-emph for another application at a later date.
The 1W PLL features out of lock shutdown, this is always required for legal use when the transmitter is connected to a radiating antenna. The diagram above shows how to set the jumper to activate it.
1. Plug in a 50 ohm dummy load to the RF output OR Reduce the power to zero by turning VR2 fully anticlockwise.
2. Apply between 12 and 16 volts to the PCB position marked +15V (+) and 0V (-). DO NOT EXCEED 16V DC.
3. Choose a frequency from the attached LOOK-UP table and select the appropriate code on the transmitter DIP switches.
4. Adjust VR3 slowly until the RED LED starts to dim. Continue adjusting VR3 even more slowly, the RED LED will dim further or flicker, then the BLUE LED will illuminate. The BLUE LED indicates a locked condition.
5. Experiment with the adjustment of VR3 to find centre lock repeating step 4.
6. Apply audio at line level to CON1. Adjust the VR1 for correct FM deviation.
7. Remove the 50 ohm dummy load from the output OR Increase the power to full by turning VR2 fully clockwise. You are now ready to install the 1W PLL into your transmission system.
SPECIFICATIONS
The following tests were taken at 15V DC and the worst case measurement was recorded over the range -20 to +50 deg C.
| Frequency | 100KHz steps from 87.5 to 108MHz |
| RF Power Output | 1000mW to 1400mW into 50 Ohm load |
| Deviation Sensitivity Stability | +/-2% max |
| Spurious Emissions | >75dB rtc |
| Harmonic Emissions | >63dB rtc |
| Out of Lock RF Muting | >63dB rtc |
| Freq Stability | +/- 1 KHz max., typ. +/-300Hz |
| Freq Fine Adj (VC2) | > +/- 1000Hz |
| RF Output Connector | N type Female |
| Audio Input Sensitivity | 0.775 V rms for +/- 75 KHz |
| Signal To Noise Ratio | 80 dBu |
| Frequency Response | Flat from 30 Hz to 76 KHz |
| Pre-emphasis | (50uS/ 75uS/ None) Selectable |
| Audio Distortion | Better than 0.2 % THD |
| Audio Input Connector | Terminal Block |
| Power Supply | 15V DC Regulated 650mA max. |
DIL SWITCH (S2 and S1)
| MHz | 1 | 2 | 3 | 4 | 5 | 6 | 1 | 2 | 3 | 4 | 5 | 6 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 87.5 | ON | ON | OFF | OFF | ON | OFF | OFF | ON | OFF | ON | OFF | ON | |
| 87.6 | ON | ON | OFF | OFF | ON | OFF | OFF | ON | OFF | ON | OFF | OFF | |
| 87.7 | ON | ON | OFF | OFF | ON | OFF | OFF | ON | OFF | OFF | ON | ON | |
| 87.8 | ON | ON | OFF | OFF | ON | OFF | OFF | ON | OFF | OFF | ON | OFF | |
| 87.9 | ON | ON | OFF | OFF | ON | OFF | OFF | ON | OFF | OFF | OFF | ON | |
| 88 | ON | ON | OFF | OFF | ON | OFF | OFF | ON | OFF | OFF | OFF | OFF | |
| 88.1 | ON | ON | OFF | OFF | ON | OFF | OFF | OFF | ON | ON | ON | ON | |
| 88.2 | ON | ON | OFF | OFF | ON | OFF | OFF | OFF | ON | ON | ON | OFF | |
| 88.3 | ON | ON | OFF | OFF | ON | OFF | OFF | OFF | ON | ON | OFF | ON | |
| 88.4 | ON | ON | OFF | OFF | ON | OFF | OFF | OFF | ON | ON | OFF | OFF | |
| 88.5 | ON | ON | OFF | OFF | ON | OFF | OFF | OFF | ON | OFF | ON | ON | |
| 88.6 | ON | ON | OFF | OFF | ON | OFF | OFF | OFF | ON | OFF | ON | OFF | |
| 88.7 | ON | ON | OFF | OFF | ON | OFF | OFF | OFF | ON | OFF | OFF | ON | |
| 88.8 | ON | ON | OFF | OFF | ON | OFF | OFF | OFF | ON | OFF | OFF | OFF | |
| 88.9 | ON | ON | OFF | OFF | ON | OFF | OFF | OFF | OFF | ON | ON | ON | |
| 89 | ON | ON | OFF | OFF | ON | OFF | OFF | OFF | OFF | ON | ON | OFF | |
| 89.1 | ON | ON | OFF | OFF | ON | OFF | OFF | OFF | OFF | ON | OFF | ON | |
| 89.2 | ON | ON | OFF | OFF | ON | OFF | OFF | OFF | OFF | ON | OFF | OFF | |
| 89.3 | ON | ON | OFF | OFF | ON | OFF | OFF | OFF | OFF | OFF | ON | ON | |
| 89.4 | ON | ON | OFF | OFF | ON | OFF | OFF | OFF | OFF | OFF | ON | OFF | |
| 89.5 | ON | ON | OFF | OFF | ON | OFF | OFF | OFF | OFF | OFF | OFF | ON | |
| 89.6 | ON | ON | OFF | OFF | ON | OFF | OFF | OFF | OFF | OFF | OFF | OFF | |
| 89.7 | ON | ON | OFF | OFF | OFF | ON | ON | ON | ON | ON | ON | ON | |
| 89.8 | ON | ON | OFF | OFF | OFF | ON | ON | ON | ON | ON | ON | OFF | |
| 89.9 | ON | ON | OFF | OFF | OFF | ON | ON | ON | ON | ON | OFF | ON | |
| 90 | ON | ON | OFF | OFF | OFF | ON | ON | ON | ON | ON | OFF | OFF | |
| 90.1 | ON | ON | OFF | OFF | OFF | ON | ON | ON | ON | OFF | ON | ON | |
| 90.2 | ON | ON | OFF | OFF | OFF | ON | ON | ON | ON | OFF | ON | OFF | |
| 90.3 | ON | ON | OFF | OFF | OFF | ON | ON | ON | ON | OFF | OFF | ON | |
| 90.4 | ON | ON | OFF | OFF | OFF | ON | ON | ON | ON | OFF | OFF | OFF | |
| 90.5 | ON | ON | OFF | OFF | OFF | ON | ON | ON | OFF | ON | ON | ON | |
| 90.6 | ON | ON | OFF | OFF | OFF | ON | ON | ON | OFF | ON | ON | OFF | |
| 90.7 | ON | ON | OFF | OFF | OFF | ON | ON | ON | OFF | ON | OFF | ON | |
| 90.8 | ON | ON | OFF | OFF | OFF | ON | ON | ON | OFF | ON | OFF | OFF | |
| 90.9 | ON | ON | OFF | OFF | OFF | ON | ON | ON | OFF | OFF | ON | ON | |
| 91 | ON | ON | OFF | OFF | OFF | ON | ON | ON | OFF | OFF | ON | OFF | |
| 91.1 | ON | ON | OFF | OFF | OFF | ON | ON | ON | OFF | OFF | OFF | ON | |
| 91.2 | ON | ON | OFF | OFF | OFF | ON | ON | ON | OFF | OFF | OFF | OFF | |
| 91.3 | ON | ON | OFF | OFF | OFF | ON | ON | OFF | ON | ON | ON | ON | |
| 91.4 | ON | ON | OFF | OFF | OFF | ON | ON | OFF | ON | ON | ON | OFF | |
| 91.5 | ON | ON | OFF | OFF | OFF | ON | ON | OFF | ON | ON | OFF | ON | |
| 91.6 | ON | ON | OFF | OFF | OFF | ON | ON | OFF | ON | ON | OFF | OFF | |
| 91.7 | ON | ON | OFF | OFF | OFF | ON | ON | OFF | ON | OFF | ON | ON | |
| 91.8 | ON | ON | OFF | OFF | OFF | ON | ON | OFF | ON | OFF | ON | OFF | |
| 91.9 | ON | ON | OFF | OFF | OFF | ON | ON | OFF | ON | OFF | OFF | ON | |
| 92 | ON | ON | OFF | OFF | OFF | ON | ON | OFF | ON | OFF | OFF | OFF | |
| 92.1 | ON | ON | OFF | OFF | OFF | ON | ON | OFF | OFF | ON | ON | ON | |
| 92.2 | ON | ON | OFF | OFF | OFF | ON | ON | OFF | OFF | ON | ON | OFF | |
| 92.3 | ON | ON | OFF | OFF | OFF | ON | ON | OFF | OFF | ON | OFF | ON | |
| 92.4 | ON | ON | OFF | OFF | OFF | ON | ON | OFF | OFF | ON | OFF | OFF | |
| 92.5 | ON | ON | OFF | OFF | OFF | ON | ON | OFF | OFF | OFF | ON | ON | |
| 92.6 | ON | ON | OFF | OFF | OFF | ON | ON | OFF | OFF | OFF | ON | OFF | |
| 92.7 | ON | ON | OFF | OFF | OFF | ON | ON | OFF | OFF | OFF | OFF | ON | |
| 92.8 | ON | ON | OFF | OFF | OFF | ON | ON | OFF | OFF | OFF | OFF | OFF | |
| 92.9 | ON | ON | OFF | OFF | OFF | ON | OFF | ON | ON | ON | ON | ON | |
| 93 | ON | ON | OFF | OFF | OFF | ON | OFF | ON | ON | ON | ON | OFF | |
| 93.1 | ON | ON | OFF | OFF | OFF | ON | OFF | ON | ON | ON | OFF | ON | |
| 93.2 | ON | ON | OFF | OFF | OFF | ON | OFF | ON | ON | ON | OFF | OFF | |
| 93.3 | ON | ON | OFF | OFF | OFF | ON | OFF | ON | ON | OFF | ON | ON | |
| 93.4 | ON | ON | OFF | OFF | OFF | ON | OFF | ON | ON | OFF | ON | OFF | |
| 93.5 | ON | ON | OFF | OFF | OFF | ON | OFF | ON | ON | OFF | OFF | ON | |
| 93.6 | ON | ON | OFF | OFF | OFF | ON | OFF | ON | ON | OFF | OFF | OFF | |
| 93.7 | ON | ON | OFF | OFF | OFF | ON | OFF | ON | OFF | ON | ON | ON | |
| 93.8 | ON | ON | OFF | OFF | OFF | ON | OFF | ON | OFF | ON | ON | OFF | |
| 93.9 | ON | ON | OFF | OFF | OFF | ON | OFF | ON | OFF | ON | OFF | ON | |
| 94 | ON | ON | OFF | OFF | OFF | ON | OFF | ON | OFF | ON | OFF | OFF | |
| 94.1 | ON | ON | OFF | OFF | OFF | ON | OFF | ON | OFF | OFF | ON | ON | |
| 94.2 | ON | ON | OFF | OFF | OFF | ON | OFF | ON | OFF | OFF | ON | OFF | |
| 94.3 | ON | ON | OFF | OFF | OFF | ON | OFF | ON | OFF | OFF | OFF | ON | |
| 94.4 | ON | ON | OFF | OFF | OFF | ON | OFF | ON | OFF | OFF | OFF | OFF | |
| 94.5 | ON | ON | OFF | OFF | OFF | ON | OFF | OFF | ON | ON | ON | ON | |
| 94.6 | ON | ON | OFF | OFF | OFF | ON | OFF | OFF | ON | ON | ON | OFF | |
| 94.7 | ON | ON | OFF | OFF | OFF | ON | OFF | OFF | ON | ON | OFF | ON | |
| 94.8 | ON | ON | OFF | OFF | OFF | ON | OFF | OFF | ON | ON | OFF | OFF | |
| 94.9 | ON | ON | OFF | OFF | OFF | ON | OFF | OFF | ON | OFF | ON | ON | |
| 95 | ON | ON | OFF | OFF | OFF | ON | OFF | OFF | ON | OFF | ON | OFF | |
| 95.1 | ON | ON | OFF | OFF | OFF | ON | OFF | OFF | ON | OFF | OFF | ON | |
| 95.2 | ON | ON | OFF | OFF | OFF | ON | OFF | OFF | ON | OFF | OFF | OFF | |
| 95.3 | ON | ON | OFF | OFF | OFF | ON | OFF | OFF | OFF | ON | ON | ON | |
| 95.4 | ON | ON | OFF | OFF | OFF | ON | OFF | OFF | OFF | ON | ON | OFF | |
| 95.5 | ON | ON | OFF | OFF | OFF | ON | OFF | OFF | OFF | ON | OFF | ON | |
| 95.6 | ON | ON | OFF | OFF | OFF | ON | OFF | OFF | OFF | ON | OFF | OFF | |
| 95.7 | ON | ON | OFF | OFF | OFF | ON | OFF | OFF | OFF | OFF | ON | ON | |
| 95.8 | ON | ON | OFF | OFF | OFF | ON | OFF | OFF | OFF | OFF | ON | OFF | |
| 95.9 | ON | ON | OFF | OFF | OFF | ON | OFF | OFF | OFF | OFF | OFF | ON | |
| 96 | ON | ON | OFF | OFF | OFF | ON | OFF | OFF | OFF | OFF | OFF | OFF | |
| 96.1 | ON | ON | OFF | OFF | OFF | OFF | ON | ON | ON | ON | ON | ON | |
| 96.2 | ON | ON | OFF | OFF | OFF | OFF | ON | ON | ON | ON | ON | OFF | |
| 96.3 | ON | ON | OFF | OFF | OFF | OFF | ON | ON | ON | ON | OFF | ON | |
| 96.4 | ON | ON | OFF | OFF | OFF | OFF | ON | ON | ON | ON | OFF | OFF | |
| 96.5 | ON | ON | OFF | OFF | OFF | OFF | ON | ON | ON | OFF | ON | ON | |
| 96.6 | ON | ON | OFF | OFF | OFF | OFF | ON | ON | ON | OFF | ON | OFF | |
| 96.7 | ON | ON | OFF | OFF | OFF | OFF | ON | ON | ON | OFF | OFF | ON | |
| 96.8 | ON | ON | OFF | OFF | OFF | OFF | ON | ON | ON | OFF | OFF | OFF | |
| 96.9 | ON | ON | OFF | OFF | OFF | OFF | ON | ON | OFF | ON | ON | ON | |
| 97 | ON | ON | OFF | OFF | OFF | OFF | ON | ON | OFF | ON | ON | OFF | |
| 97.1 | ON | ON | OFF | OFF | OFF | OFF | ON | ON | OFF | ON | OFF | ON | |
| 97.2 | ON | ON | OFF | OFF | OFF | OFF | ON | ON | OFF | ON | OFF | OFF | |
| 97.3 | ON | ON | OFF | OFF | OFF | OFF | ON | ON | OFF | OFF | ON | ON | |
| 97.4 | ON | ON | OFF | OFF | OFF | OFF | ON | ON | OFF | OFF | ON | OFF | |
| 97.5 | ON | ON | OFF | OFF | OFF | OFF | ON | ON | OFF | OFF | OFF | ON | |
| 97.6 | ON | ON | OFF | OFF | OFF | OFF | ON | ON | OFF | OFF | OFF | OFF | |
| 97.7 | ON | ON | OFF | OFF | OFF | OFF | ON | OFF | ON | ON | ON | ON | |
| 97.8 | ON | ON | OFF | OFF | OFF | OFF | ON | OFF | ON | ON | ON | OFF | |
| 97.9 | ON | ON | OFF | OFF | OFF | OFF | ON | OFF | ON | ON | OFF | ON | |
| 98 | ON | ON | OFF | OFF | OFF | OFF | ON | OFF | ON | ON | OFF | OFF | |
| 98.1 | ON | ON | OFF | OFF | OFF | OFF | ON | OFF | ON | OFF | ON | ON | |
| 98.2 | ON | ON | OFF | OFF | OFF | OFF | ON | OFF | ON | OFF | ON | OFF | |
| 98.3 | ON | ON | OFF | OFF | OFF | OFF | ON | OFF | ON | OFF | OFF | ON | |
| 98.4 | ON | ON | OFF | OFF | OFF | OFF | ON | OFF | ON | OFF | OFF | OFF | |
| 98.5 | ON | ON | OFF | OFF | OFF | OFF | ON | OFF | OFF | ON | ON | ON | |
| 98.6 | ON | ON | OFF | OFF | OFF | OFF | ON | OFF | OFF | ON | ON | OFF | |
| 98.7 | ON | ON | OFF | OFF | OFF | OFF | ON | OFF | OFF | ON | OFF | ON | |
| 98.8 | ON | ON | OFF | OFF | OFF | OFF | ON | OFF | OFF | ON | OFF | OFF | |
| 98.9 | ON | ON | OFF | OFF | OFF | OFF | ON | OFF | OFF | OFF | ON | ON | |
| 99 | ON | ON | OFF | OFF | OFF | OFF | ON | OFF | OFF | OFF | ON | OFF | |
| 99.1 | ON | ON | OFF | OFF | OFF | OFF | ON | OFF | OFF | OFF | OFF | ON | |
| 99.2 | ON | ON | OFF | OFF | OFF | OFF | ON | OFF | OFF | OFF | OFF | OFF | |
| 99.3 | ON | ON | OFF | OFF | OFF | OFF | OFF | ON | ON | ON | ON | ON | |
| 99.4 | ON | ON | OFF | OFF | OFF | OFF | OFF | ON | ON | ON | ON | OFF | |
| 99.5 | ON | ON | OFF | OFF | OFF | OFF | OFF | ON | ON | ON | OFF | ON | |
| 99.6 | ON | ON | OFF | OFF | OFF | OFF | OFF | ON | ON | ON | OFF | OFF | |
| 99.7 | ON | ON | OFF | OFF | OFF | OFF | OFF | ON | ON | OFF | ON | ON | |
| 99.8 | ON | ON | OFF | OFF | OFF | OFF | OFF | ON | ON | OFF | ON | OFF | |
| 99.9 | ON | ON | OFF | OFF | OFF | OFF | OFF | ON | ON | OFF | OFF | ON | |
| 100 | ON | ON | OFF | OFF | OFF | OFF | OFF | ON | ON | OFF | OFF | OFF | |
| 100.1 | ON | ON | OFF | OFF | OFF | OFF | OFF | ON | OFF | ON | ON | ON | |
| 100.2 | ON | ON | OFF | OFF | OFF | OFF | OFF | ON | OFF | ON | ON | OFF | |
| 100.3 | ON | ON | OFF | OFF | OFF | OFF | OFF | ON | OFF | ON | OFF | ON | |
| 100.4 | ON | ON | OFF | OFF | OFF | OFF | OFF | ON | OFF | ON | OFF | OFF | |
| 100.5 | ON | ON | OFF | OFF | OFF | OFF | OFF | ON | OFF | OFF | ON | ON | |
| 100.6 | ON | ON | OFF | OFF | OFF | OFF | OFF | ON | OFF | OFF | ON | OFF | |
| 100.7 | ON | ON | OFF | OFF | OFF | OFF | OFF | ON | OFF | OFF | OFF | ON | |
| 100.8 | ON | ON | OFF | OFF | OFF | OFF | OFF | ON | OFF | OFF | OFF | OFF | |
| 100.9 | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | ON | ON | ON | ON | |
| 101 | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | ON | ON | ON | OFF | |
| 101.1 | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | ON | ON | OFF | ON | |
| 101.2 | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | ON | ON | OFF | OFF | |
| 101.3 | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | ON | OFF | ON | ON | |
| 101.4 | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | ON | OFF | ON | OFF | |
| 101.5 | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | ON | OFF | OFF | ON | |
| 101.6 | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | ON | OFF | OFF | OFF | |
| 101.7 | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | OFF | ON | ON | ON | |
| 101.8 | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | OFF | ON | ON | OFF | |
| 101.9 | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | OFF | ON | OFF | ON | |
| 102 | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | OFF | ON | OFF | OFF | |
| 102.1 | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | OFF | OFF | ON | ON | |
| 102.2 | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | OFF | OFF | ON | OFF | |
| 102.3 | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | OFF | OFF | OFF | ON | |
| 102.4 | ON | ON | OFF | OFF | OFF | OFF | OFF | OFF | OFF | OFF | OFF | OFF | |
| 102.5 | ON | OFF | ON | ON | ON | ON | ON | ON | ON | ON | ON | ON | |
| 102.6 | ON | OFF | ON | ON | ON | ON | ON | ON | ON | ON | ON | OFF | |
| 102.7 | ON | OFF | ON | ON | ON | ON | ON | ON | ON | ON | OFF | ON | |
| 102.8 | ON | OFF | ON | ON | ON | ON | ON | ON | ON | ON | OFF | OFF | |
| 102.9 | ON | OFF | ON | ON | ON | ON | ON | ON | ON | OFF | ON | ON | |
| 103 | ON | OFF | ON | ON | ON | ON | ON | ON | ON | OFF | ON | OFF | |
| 103.1 | ON | OFF | ON | ON | ON | ON | ON | ON | ON | OFF | OFF | ON | |
| 103.2 | ON | OFF | ON | ON | ON | ON | ON | ON | ON | OFF | OFF | OFF | |
| 103.3 | ON | OFF | ON | ON | ON | ON | ON | ON | OFF | ON | ON | ON | |
| 103.4 | ON | OFF | ON | ON | ON | ON | ON | ON | OFF | ON | ON | OFF | |
| 103.5 | ON | OFF | ON | ON | ON | ON | ON | ON | OFF | ON | OFF | ON | |
| 103.6 | ON | OFF | ON | ON | ON | ON | ON | ON | OFF | ON | OFF | OFF | |
| 103.7 | ON | OFF | ON | ON | ON | ON | ON | ON | OFF | OFF | ON | ON | |
| 103.8 | ON | OFF | ON | ON | ON | ON | ON | ON | OFF | OFF | ON | OFF | |
| 103.9 | ON | OFF | ON | ON | ON | ON | ON | ON | OFF | OFF | OFF | ON | |
| 104 | ON | OFF | ON | ON | ON | ON | ON | ON | OFF | OFF | OFF | OFF | |
| 104.1 | ON | OFF | ON | ON | ON | ON | ON | OFF | ON | ON | ON | ON | |
| 104.2 | ON | OFF | ON | ON | ON | ON | ON | OFF | ON | ON | ON | OFF | |
| 104.3 | ON | OFF | ON | ON | ON | ON | ON | OFF | ON | ON | OFF | ON | |
| 104.4 | ON | OFF | ON | ON | ON | ON | ON | OFF | ON | ON | OFF | OFF | |
| 104.5 | ON | OFF | ON | ON | ON | ON | ON | OFF | ON | OFF | ON | ON | |
| 104.6 | ON | OFF | ON | ON | ON | ON | ON | OFF | ON | OFF | ON | OFF | |
| 104.7 | ON | OFF | ON | ON | ON | ON | ON | OFF | ON | OFF | OFF | ON | |
| 104.8 | ON | OFF | ON | ON | ON | ON | ON | OFF | ON | OFF | OFF | OFF | |
| 104.9 | ON | OFF | ON | ON | ON | ON | ON | OFF | OFF | ON | ON | ON | |
| 105 | ON | OFF | ON | ON | ON | ON | ON | OFF | OFF | ON | ON | OFF | |
| 105.1 | ON | OFF | ON | ON | ON | ON | ON | OFF | OFF | ON | OFF | ON | |
| 105.2 | ON | OFF | ON | ON | ON | ON | ON | OFF | OFF | ON | OFF | OFF | |
| 105.3 | ON | OFF | ON | ON | ON | ON | ON | OFF | OFF | OFF | ON | ON | |
| 105.4 | ON | OFF | ON | ON | ON | ON | ON | OFF | OFF | OFF | ON | OFF | |
| 105.5 | ON | OFF | ON | ON | ON | ON | ON | OFF | OFF | OFF | OFF | ON | |
| 105.6 | ON | OFF | ON | ON | ON | ON | ON | OFF | OFF | OFF | OFF | OFF | |
| 105.7 | ON | OFF | ON | ON | ON | ON | OFF | ON | ON | ON | ON | ON | |
| 105.8 | ON | OFF | ON | ON | ON | ON | OFF | ON | ON | ON | ON | OFF | |
| 105.9 | ON | OFF | ON | ON | ON | ON | OFF | ON | ON | ON | OFF | ON | |
| 106 | ON | OFF | ON | ON | ON | ON | OFF | ON | ON | ON | OFF | OFF | |
| 106.1 | ON | OFF | ON | ON | ON | ON | OFF | ON | ON | OFF | ON | ON | |
| 106.2 | ON | OFF | ON | ON | ON | ON | OFF | ON | ON | OFF | ON | OFF | |
| 106.3 | ON | OFF | ON | ON | ON | ON | OFF | ON | ON | OFF | OFF | ON | |
| 106.4 | ON | OFF | ON | ON | ON | ON | OFF | ON | ON | OFF | OFF | OFF | |
| 106.5 | ON | OFF | ON | ON | ON | ON | OFF | ON | OFF | ON | ON | ON | |
| 106.6 | ON | OFF | ON | ON | ON | ON | OFF | ON | OFF | ON | ON | OFF | |
| 106.7 | ON | OFF | ON | ON | ON | ON | OFF | ON | OFF | ON | OFF | ON | |
| 106.8 | ON | OFF | ON | ON | ON | ON | OFF | ON | OFF | ON | OFF | OFF | |
| 106.9 | ON | OFF | ON | ON | ON | ON | OFF | ON | OFF | OFF | ON | ON | |
| 107 | ON | OFF | ON | ON | ON | ON | OFF | ON | OFF | OFF | ON | OFF | |
| 107.1 | ON | OFF | ON | ON | ON | ON | OFF | ON | OFF | OFF | OFF | ON | |
| 107.2 | ON | OFF | ON | ON | ON | ON | OFF | ON | OFF | OFF | OFF | OFF | |
| 107.3 | ON | OFF | ON | ON | ON | ON | OFF | OFF | ON | ON | ON | ON | |
| 107.4 | ON | OFF | ON | ON | ON | ON | OFF | OFF | ON | ON | ON | OFF | |
| 107.5 | ON | OFF | ON | ON | ON | ON | OFF | OFF | ON | ON | OFF | ON | |
| 107.6 | ON | OFF | ON | ON | ON | ON | OFF | OFF | ON | ON | OFF | OFF | |
| 107.7 | ON | OFF | ON | ON | ON | ON | OFF | OFF | ON | OFF | ON | ON | |
| 107.8 | ON | OFF | ON | ON | ON | ON | OFF | OFF | ON | OFF | ON | OFF | |
| 107.9 | ON | OFF | ON | ON | ON | ON | OFF | OFF | ON | OFF | OFF | ON | |
| 108 | ON | OFF | ON | ON | ON | ON | OFF | OFF | ON | OFF | OFF | OFF |
ROHS
All components used in this apparatus are RoHS compliant and do not contain above the specified limits in any of the following restricted substances:
• Lead
• Hexavalent Chromium
• Mercury
• Cadmium
• Polybrominated Biphenyls (PBB's)
• Polybrominated Diphenylethers (PBDE's)
PRODUCT END OF LIFE
This apparatus must NOT be disposed of with other domestic waste.
We are fully committed to maintaining our responsibilities to the environment. Owners of apparatus that has reached the end of it's useful life can return it to us for recycling, recondition, reuse or proper disposal. You will be required to pay lowest cost postal service available to ship the apparatus to us. Before shipping please contact us for more important information.
DECLARATION OF CONFORMITY
AAREFF TRANSMISSION SYSTEMS SL
AVDA ANDALUCIA 1
LA ALFOQUIA-ZURGENA
04661
ALMERIA
ESPANA.
Paul Hollings
In Zurgena, Almería, Spain on 01 of November 2011, the equipment:
Original and Genuine Veronica 1W PLL (1WPLLM) meets the essential requirements of the R&TTE directive
ETS 300 384/A1 ed.1 (1997-2002) Broadcasting Systems Transmitters FM sound broadcasting in very high frequency (VHF)
It should be noted that this cannot be legally used as a standalone unit. This sub assembly is designed and intended to be installed in a fully screened EMC enclosure with or without other sub assemblies. Any final design should be further tested to verify it meets the essential requirements of:
EN 301 489-11 V1.3.1 (2006-05) Electromagnetic compatibility and Radio Spectrum Matters (EMC) for radio equipment and services. Part 11: Specific conditions for transmitting the terrestrial sound broadcasting service.
2006/95/EC DIRECTIVE 2006/95/EC of 12 December 2006 on electrical equipment designed for use within certain voltage limits.
© 2011 Aareff Systems Limited
ALL RIGHTS RESERVED. Aareff is a trademark of Aareff Transmission Systems. All contents of this document including, but not limited to the images, logos, text, illustrations are protected by copyrights, trademarks and other intellectual property rights which are owned and controlled by Aareff Transmission Systems or by other parties that have licensed their material to Aareff Transmission Systems. This document in part or whole may not be copied, reproduced, republished, uploaded, posted or distributed in any way, including by e-mail, ftp or any other electronic means
Every care has been taken in the preparation of this document, errors in content, typographical or otherwise, may have occurred. If you have comments concerning its accuracy, please contact Aareff Systems Limited (UK)
